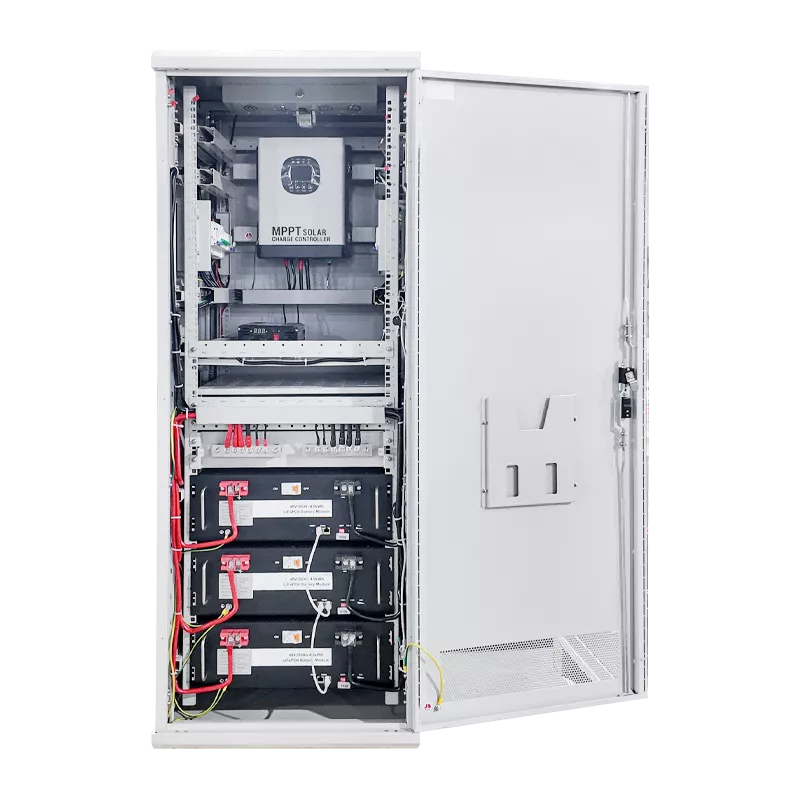

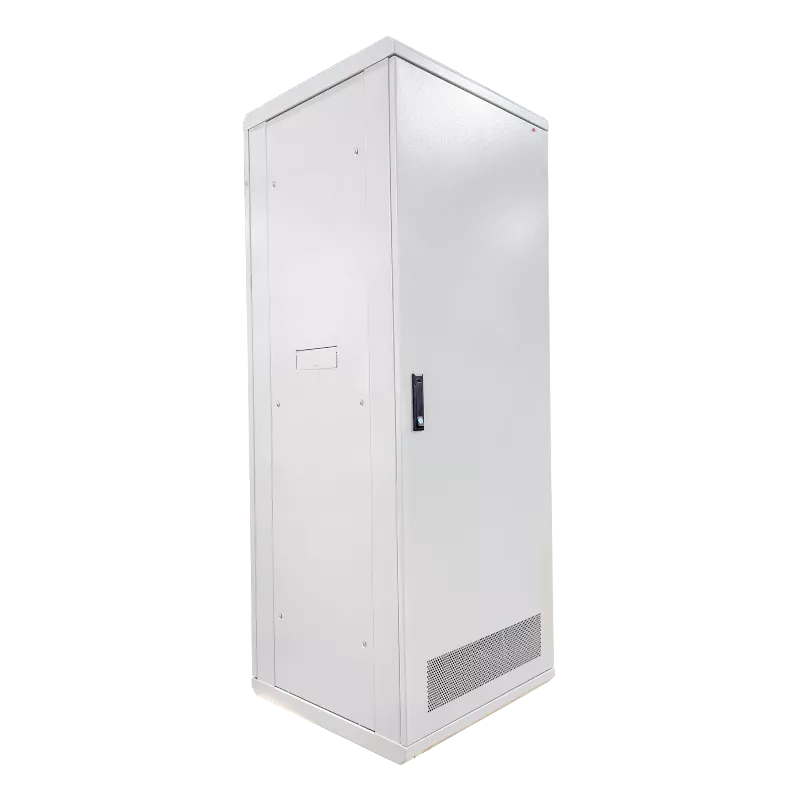

Indoor Pv Energy Cabinet

Indoor Pv Energy Cabinet
Indoor Pv Energy Cabinet
Indoor Pv Energy Cabinet
Indoor Pv Energy Cabinet

Product Overview

The indoor PV energy cabinet is designed specifically for communication base stations, connecting solar PV energy into the base station power supply system to provide clean and renewable energy for base station equipment. The cabinet uses a floor-standing installation structure for convenient deployment within equipment rooms, integrating PV input access, energy management, and DC power distribution functions. By introducing PV energy, it reduces the base station's reliance on mains power, achieving energy-saving and emission-reduction goals, and providing a green and sustainable energy solution for communication base stations. The product is stable and reliable in performance, and is widely used in communication network construction and operation and maintenance.

Mounting:
Floor-standing
Energy type:
Clean and renewable PV energy
Application:
Power supply for communication base station equipment
Functional positioning:
PV energy access and DC power distribution
Live Chat Request Brochure

Key Advantages

Floor-standing structure

Indoor floor-standing installation design, facilitating deployment and maintenance within base station equipment rooms

Clean energy access

PV energy is directly connected to the base station power supply system, providing clean and renewable electricity

Reduced reliance on mains power

Reduces the base station's consumption of mains power, helping operators achieve energy-saving and emission-reduction goals

Integrated design

Integrates PV input, energy management, and DC power distribution functions

Indoor Pv Energy Cabinet

Application Scenarios

New Energy Power Supporting Equipment

New Energy Power Supporting Equipment

Applicable to communication, power distribution and protection for energy applications

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Unattended Outdoor Base Station Sites

Unattended Outdoor Base Station Sites

Suitable for long-term stable operation in complex outdoor environments

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Technical Specifications

Model HJ-Z06-10I HJ-Z12-20I HJ-Z18-30I HJ-Z24-40I
Power 6kW (max 9kW) 12kW (max 24kW) 18kW (max 36kW) 24kW (max 48kW)
Maximum energy storage capacity 10KWh 20KWh 30KWh 40KWh
Energy input and output Grid power, photovoltaic, and energy storage
Operating environment Indoor
Mounting Floor-standing
Specification dimensions 1200mm*700mm*700mm 1600mm*700mm*700mm 2000mm*750mm*750mm 2000mm*1550mm*800mm

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
