01
Multi-source intelligent dispatch
Prioritizes wind and solar; grid and storage complement automatically, with peak shaving to cut bills and emissions.
Site Energy Management System
The site energy management system delivers integrated green power for telecom base stations—prioritizing clean energy across PV, wind, grid, and storage, peak-shaving to cut electricity use, with a cloud platform for remote energy and device monitoring across all sites.
Solution Positioning
This intelligent energy control platform for telecom sites pairs hybrid energy control cabinets, storage, and MPPT hardware to automatically switch among wind, solar, storage, and grid power. It collects energy, environment, and device data in real time, supports PC and mobile visual operations, and fits hybrid-energy telecom sites for cost reduction, supply stability, and digital operations in one package.
02
Full-dimension remote monitoring
PC dashboards and mobile apps show generation, battery, and temperature/humidity in real time, with proactive fault alerts.
03
Complete hardware package
Works with in-house MPPT, indoor/outdoor hybrid energy cabinets, and storage batteries—modular for all base-station retrofits.
04
Stable across scenarios
Wide-temperature, high-protection gear for mountain, island, and suburban sites—keeping base stations powered year-round.
Applicable Site Types: Wind-solar-storage hybrid base stations / Remote off-grid base stations without grid power / Suburban macro sites with unstable grid / Existing telecom sites under low-carbon retrofit

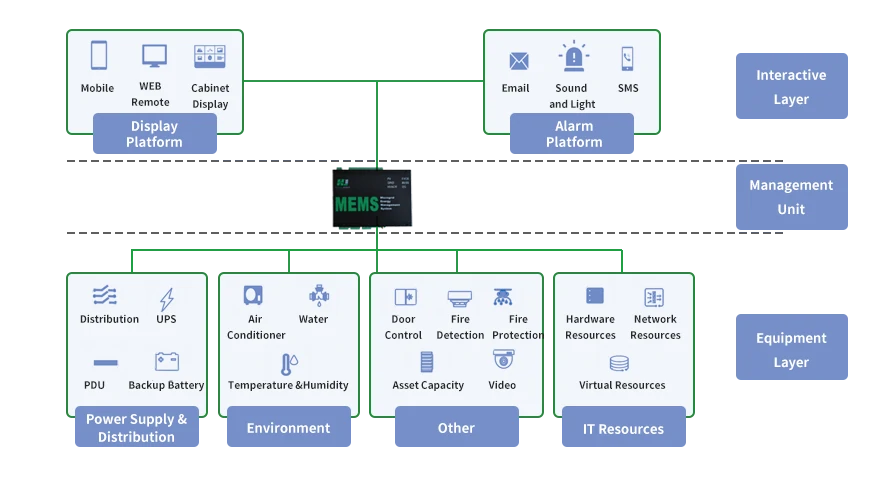

System Operation Logic
The MEMS management unit is the system core—collecting power, environment, security, and IT device data and issuing control commands.
Collected data syncs to a visual platform so operators can view status and control devices remotely via phone, web, or cabinet screens.
When anomalies are detected, the system triggers SMS, email, and audible/visual alarms so operators can respond quickly.
Find the Right Energy Solution for Your Telecom Site
Our expert team provides customized solutions and full-lifecycle support
Related Products
View All Products
Data Center Busway
Data center smart mini busway with plug-and-play bus-architecture power distribution, supporting online insertion/removal without power interruption for maintenance, suitable for high-density data center power distribution scenarios.
Architecture:Bus architecture, full busway connection from UPS to PDU
Connection components:Connecting copper bars, feed-in box, tap-off box
Maintenance method:Maintenance-free, power distribution units are reusable
Installation feature:Plug-and-play; can be connected or disconnected without interrupting power to the busway
Pv Distribution Box
PV AC grid-connected power distribution cabinet with integrated lightning protection, anti-islanding protection, and a visible isolation switch disconnect point, suitable for PV grid-connected power generation scenarios.
Lightning protection:Input surge arrester
Metering method:Sealed energy meter
Monitoring interface:RS485 (optional)
Safety configuration:Visible isolation switch disconnect point
Single Fan Outdoor Cab
10-14U single-layer outdoor fan-cooled cabinet made of metal panels with fan cooling, integrating power distribution, monitoring, temperature control, and lightning protection, suitable for outdoor applications at small sites.
Specifications:10-14U
Main Material:Premium metal sheet
Cooling Method:Fan cooling
Integrated Functions:Equipment, power distribution, monitoring, temperature control, and lightning protection grounding
Hc Container Module
The HC series containerized micro-module integrates a complete set of equipment room facilities, usable in outdoor scenarios without a dedicated equipment room; the prefabricated unit can be transported worldwide, is energy-efficient, and supports remote automated operations and maintenance.
Carrier:Standard shipping container, seismic resistance level 8
Environment:All-weather operation from -20°C to 45°C
Delivery:Factory prefabricated, reducing construction time by 50%
Operations and maintenance:Equipped with remote intelligent management and control
BBU Energy Saving Cabinet
Integrated cabinet-level BBU energy-saving cabinet with a built-in 3.5kW cooling system, modular prefabrication, and support for multi-cabinet parallel connection, reducing cooling energy consumption in 5G equipment rooms.
Overall dimensions:2000/2200×600×1000mm
Cooling capacity:3.5KW
Capacity:42/46U
Parallel connection capability:2-3 units
Outdoor Integrated Power
Outdoor integrated power supply with a die-cast aluminum enclosure rated IP65, modular assembly, and near-end APP monitoring support, suitable for 5G macro site, small cell site, and micro site scenarios.
IP Rating:IP65, fully enclosed natural heat dissipation
Enclosure material:Die-cast aluminum enclosure
Mounting:Supports wall-mounted and pole-mounted installation
Monitoring method:Near-end visual monitoring via mobile APP, remote operation and maintenance control
Indoor Pv Energy Cabinet
Indoor PV energy cabinet, floor-standing installation, providing clean and renewable PV energy for base station equipment, suitable for PV power distribution scenarios at communication base stations.
Mounting:Floor-standing
Energy type:Clean and renewable PV energy
Application:Power supply for communication base station equipment
Functional positioning:PV energy access and DC power distribution
Dual Layer Fan Cabinet
10-14U dual-layer outdoor fan-cooled cabinet made of metal panels, with fan cooling, integrating power distribution, monitoring, temperature control, and lightning protection, suitable for outdoor applications at small sites.
Specifications:10-14U
Main Material:Premium metal sheet
Cooling Method:Fan cooling
Integrated Functions:Equipment, power distribution, monitoring, temperature control, and lightning protection grounding
