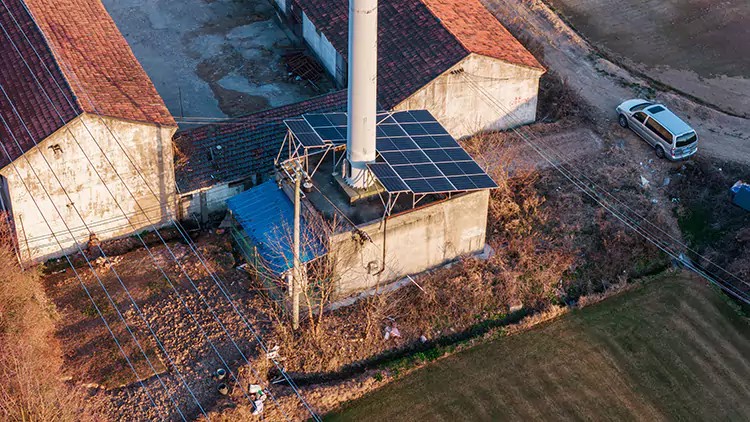

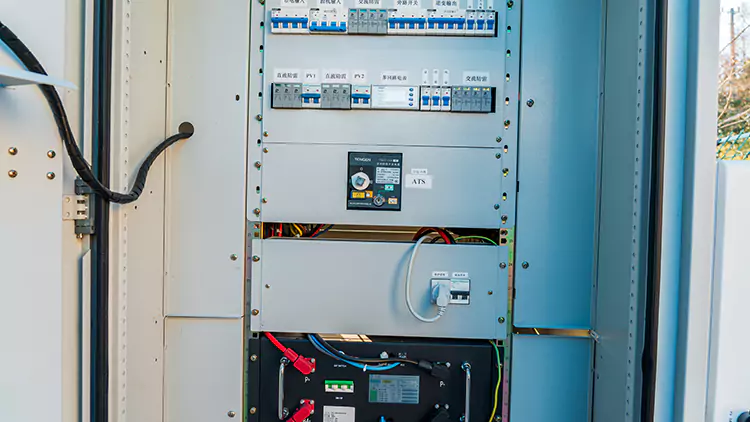

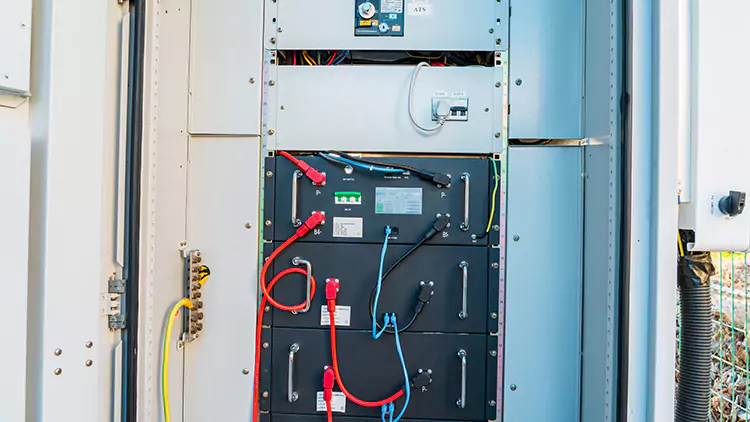

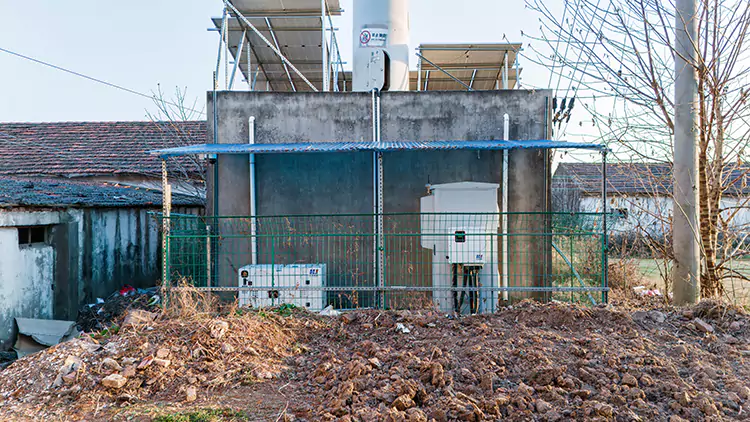

The Shanghai Fengxian Tower Qinhuo PV & energy storage retrofit is a flagship Huijue site-energy integration project. Using 41 m² of unused equipment-room rooftop, the site was fitted with an 8.8 kW PV system and a 204.8 kWh high-capacity battery bank, plus a diesel genset as emergency backup, forming a multi-source intelligent microgrid. With an ATS automatic transfer switchboard and remote data terminals, PV, storage, grid power, and diesel switch automatically. The project greened a traditional telecom base station, cut grid and fuel consumption, kept the site online during grid anomalies, and added remote intelligent O&M—delivering cost reduction, supply assurance, and lower carbon in a model that can be replicated across suburban tower sites nationwide.
Rooftop PV plus high-capacity storage builds a multi-energy complementary system, transforming grid-dependent sites into renewable-powered intelligent stations.
On-site PV self-consumption cuts grid usage and diesel start-stop cycles, reducing electricity, fuel, and on-site O&M spend together.
Automatic switching among PV, storage, and diesel keeps telecom gear powered during grid swings or outages, protecting 24/7 signal continuity.
Maximizes clean solar energy and cuts CO₂ tied to grid consumption, aligning with telecom low-carbon construction policies.
Need a similar energy storage power solution?
Our engineering team provides site surveys, solution design, and equipment integration to help your project deploy quickly
PV generation is consumed on site, sharply reducing grid draw and monthly electricity bills.
Multi-source backup lets storage and diesel cover grid anomalies seamlessly, reducing outage risk.
Fewer diesel starts cut fuel purchase, transport, and scheduled maintenance costs.
PV displaces thermal-grid power, lowering lifecycle emissions and meeting green infrastructure goals.

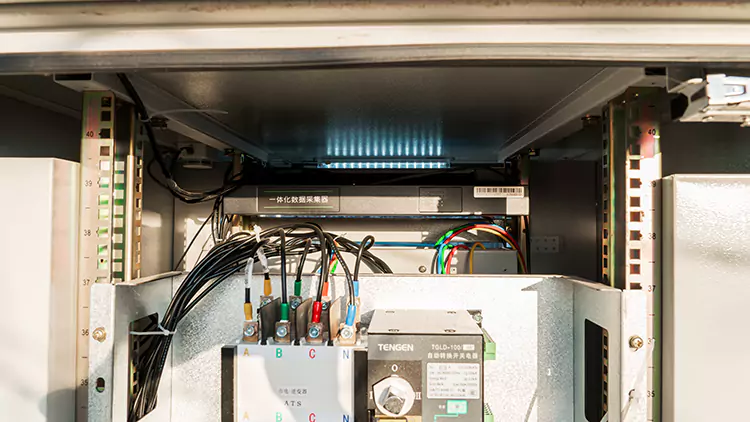

Integrated data terminals enable remote views of generation, storage, and load, reducing on-site patrols.
Modular PV–storage design allows later capacity growth as base-station power demand rises.
