Data center products from Huijue Network include network cabinets, micro modules, integrated racks, cable trays, and fiber chutes for IDC facilities, edge nodes, and telecom hubs.
Integrated cabinet-level BBU energy-saving cabinet with a built-in 3.5kW cooling system, modular prefabrication, and support for multi-cabinet parallel connection, reducing cooling energy consumption in 5G equipment rooms.
Overall dimensions:2000/2200×600×1000mm
Cooling capacity:3.5KW
Capacity:42/46U
Parallel connection capability:2-3 units
5G BBU integrated floor-standing cabinet with independent air ducts and three-line separation, compatible with equipment from multiple vendors, designed specifically for centralized deployment at 5G base stations.
Cabinet dimensions:2200×600×600mm
Total capacity:47U
Per-frame capacity:5 BBU units
Air intake method:Front intake, rear exhaust
Standard 19/21-inch IDC floor-standing cabinet with high load capacity and high ventilation, meeting the needs of bulk server and storage device installation in data centers.
Installation dimensions:19/21 inch
Panel material:Baosteel cold-rolled steel sheet
Static load:1000~1200KG
IP Rating:IP20
19/21-inch floor-standing network server cabinet with high-ventilation mesh doors, extra-large load capacity, and multi-standard compliance, dedicated for high-density equipment deployment in data centers.
Installation dimensions:19/21 inch
Panel thickness:Square-hole strip, 1.5-2.0mm
Static load:1000~1200KG
19/21-inch floor-standing heavy-duty cabinet with top and bottom ventilated mesh doors, removable side panels, static load of 1000-1200KG, suitable for installing rack-mounted IT equipment in equipment rooms.
Mounting Specs:19/21-inch standard
Static load capacity:1000~1200KG
IP Rating:IP20
Operating Temperature:-5℃~55℃
Dedicated floor-standing data center cabinet with high-density mesh door design, high load-bearing capacity suited to servers, compatible with multiple international industry standards, suitable for bulk deployment in large IDC facilities.
Mounting Specs:19/21 inch
Static load capacity:600~800KG
IP Rating:IP20
Operating Temperature:-5℃~55℃
Floor-standing heavy-duty 19/21-inch server cabinet with multiple door styles available, load capacity of 600-800KG, compliant with multiple national equipment room standards, suitable for centralized server deployment in equipment rooms.
Mounting Specs:19/21-inch standard
Static load capacity:600~800KG
IP Rating:IP20
Operating Temperature:-5℃~55℃
Standard 19/21-inch sheet-metal cabinet for network, server, and similar equipment, suitable for both wall-mounted and floor-standing installation, compliant with multiple international and domestic standards, IP20 protection.
Installation dimensions:19/21 inch
Load-bearing capacity:60~100KG
IP Rating:IP20
Operating Temperature:-5℃~55℃

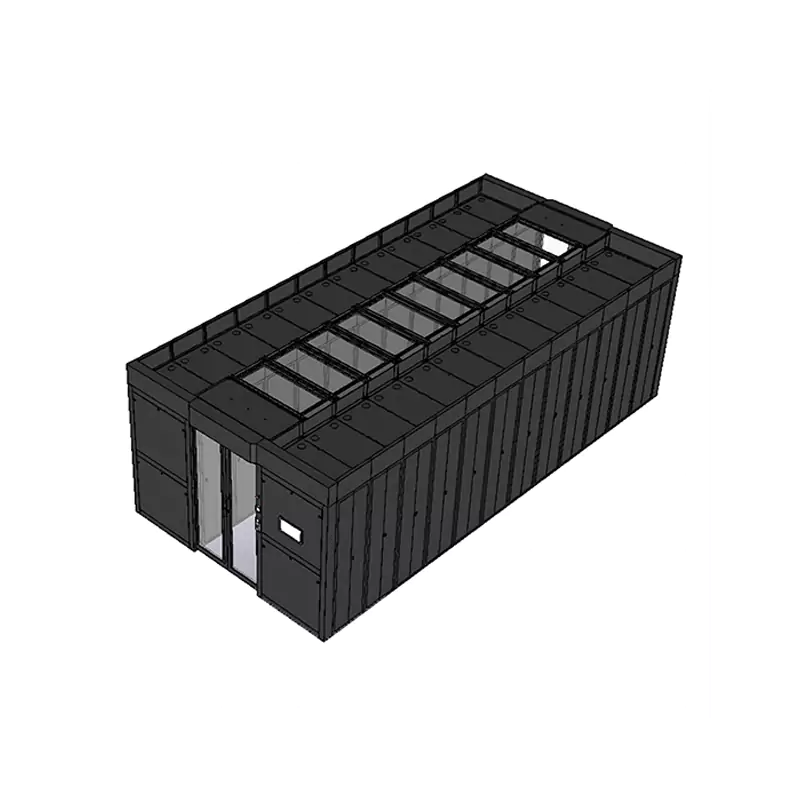

The single-sided cold aisle encloses one side of the cold air zone in front of cabinets, with a complete set of modular components that isolate cold/hot air mixing; the roof hatch supports fire suppression linkage, suitable for medium and large high-density equipment rooms.
Compatible Cabinet:6-15 units, 1-8kW per cabinet
Aisle Width:1000/1200mm optional
Main material configuration:Tempered glass, steel panels
Accessories:Doors, roof hatch, fire suppression control system
The single-sided hot aisle encloses one side of the hot air zone behind cabinets, with a complete set of modular components that centrally recover equipment exhaust air and isolate cold/hot air mixing, suitable for medium and large high-density equipment rooms.
Compatible Cabinet:6-15 units, 1-8kW per cabinet
Aisle Width:1000/1200mm optional
Main material configuration:Tempered glass, steel components
Accessories:Doors, roof hatch, dummy walls, monitoring

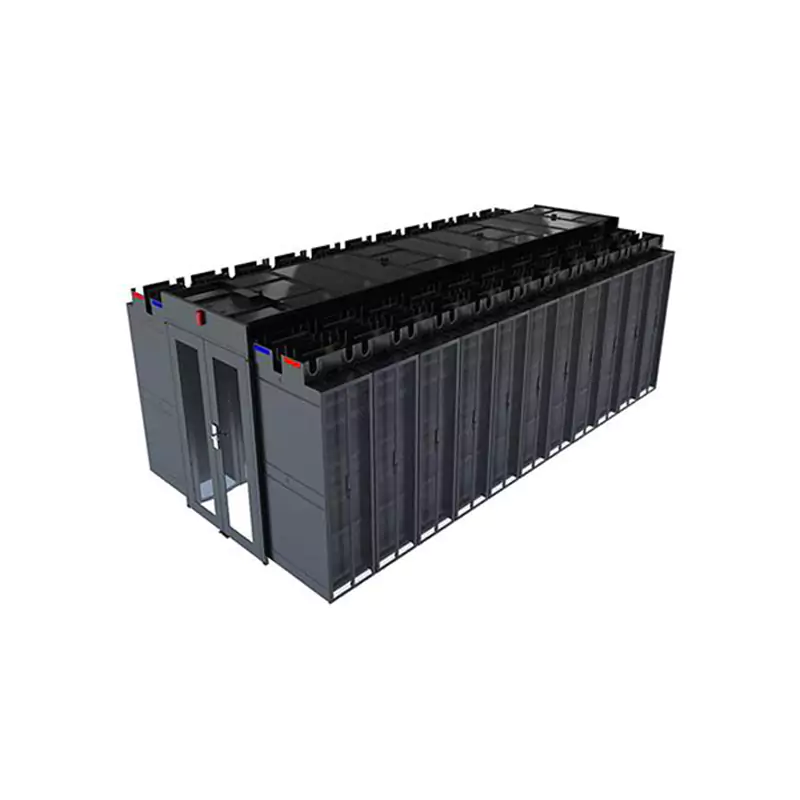

The standard hot aisle is an enclosed heat-dissipation system at the rear of cabinets that collects the hot air exhausted by equipment. It is modularly assembled with tempered glass components, suitable for medium and large high-density equipment rooms.
Compatible Cabinet:6-15 units, 1-8kW per cabinet
Aisle Width:1000/1200mm optional
Main body material:Safety tempered glass, steel panels
Matching components:Aisle doors, roof hatch, side panels
The standard cold aisle is an enclosed heat-dissipation component for equipment rooms that isolates cold and hot airflow from mixing. It is modularly assembled with a fire-suppression-linked roof hatch, suitable for medium and large high-density server rooms.
Compatible Cabinet:6-15 units, 1-8kW per cabinet
Aisle Width:1000/1200mm optional
Roof hatch function:Fire-suppression-linked automatic opening
Matching components:Doors, panels, and monitoring system

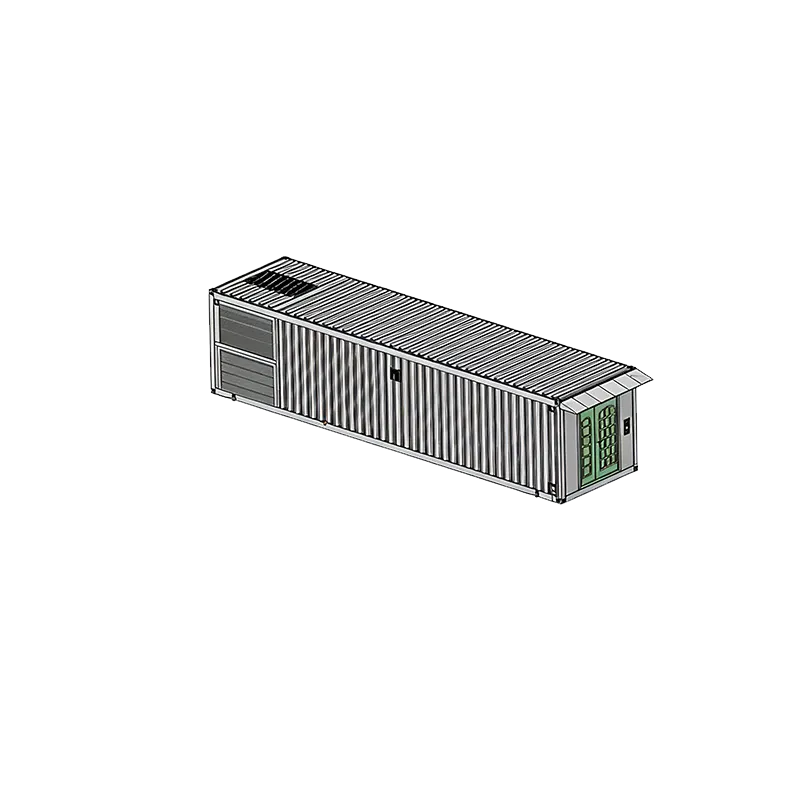

The HC series containerized micro-module integrates a complete set of equipment room facilities, usable in outdoor scenarios without a dedicated equipment room; the prefabricated unit can be transported worldwide, is energy-efficient, and supports remote automated operations and maintenance.
Carrier:Standard shipping container, seismic resistance level 8
Environment:All-weather operation from -20°C to 45°C
Delivery:Factory prefabricated, reducing construction time by 50%
Operations and maintenance:Equipped with remote intelligent management and control
The HP1000 pool-level micro-module is designed for cloud computing scenarios, integrating power distribution, cooling, cabling, and monitoring with a dual-row cold-aisle design, supporting flexible expansion of cabinets in bulk, with a green, low PUE, delivered as a complete package for medium and large equipment rooms.
Cabinet:10-40 units, 6KW load per cabinet
Cooling:25KW × 4, R410 refrigerant
Power distribution:120KVA UPS, Class C lightning protection
Monitoring:10-inch touchscreen with remote alarm
Single-cabinet integrated micro data center, combining power distribution, cooling, monitoring, and fire suppression, with installation in just 4 hours, suitable for small and micro enterprises and small edge equipment rooms.
Cabinet:42/46U, 6KW load per cabinet
Cooling:3.5KW, R410 refrigerant
Power distribution:6/10KVA UPS, Class C lightning protection
Monitoring:10-inch touchscreen with remote alarm
Integrated single-row enclosed cold-aisle micro-module solution, combining power, cooling, monitoring, and fire suppression systems, for rapid deployment of IT computing equipment in small and micro enterprises and small equipment rooms.
Cabinet:Single row of 1-8 units, 42U/46U, maximum load of 6KW per cabinet
Cooling:In-row air conditioner cooling capacity 12.5KW, R410A refrigerant
Power distribution:UPS capacity 20KVA, lightning protection Class C
Monitoring and fire suppression:Standard 10-inch touchscreen and pipe-free FM200 (heptafluoropropane) fire suppression cabinet

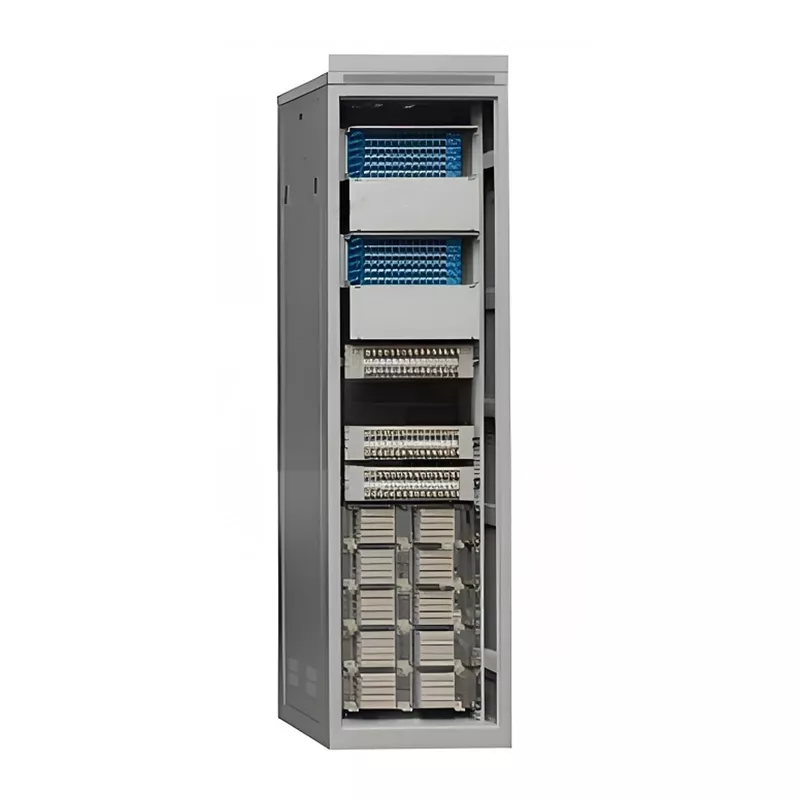

Integrated sheet-metal combined distribution cabinet with built-in audio, fiber, and digital distribution units, fully front-accessible for operations and maintenance. Suitable for communication equipment rooms in communities, buildings, and base stations, it consolidates various distribution equipment in one unit to save equipment room space.
Main body material:High-quality cold-rolled steel plate, cabinet body fully welded with electrostatic powder-coated surface
Door configuration:Single perforated front door and double perforated rear doors for ventilation and heat dissipation
Standards and specifications:Standard 19-inch universal mounting architecture, meeting postal and telecommunications technical standards
Optional accessories:Load-bearing shelves, 20×3 brass grounding busbar, PDU, cable management rack, blank panels, and thickened load-bearing base

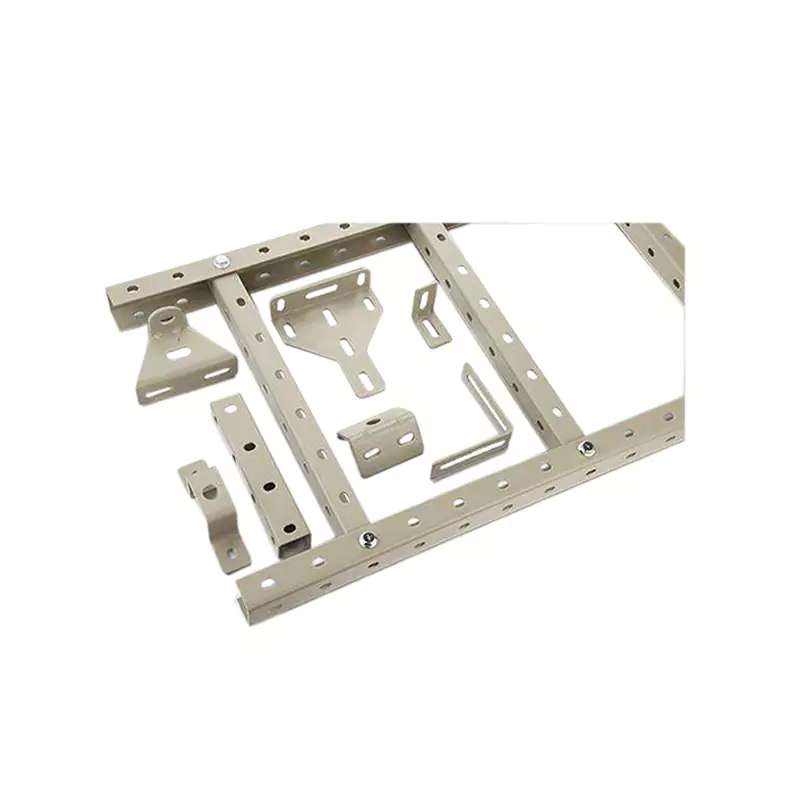

U1 U-shaped steel open cable rack, available in single-tier/double-tier with multiple sizes and corrosion-resistant treatments, for centralized routing of fiber, network, and power cables in indoor and outdoor equipment rooms.
Structure:Single-layer and double-layer configurations
Standard Width:300/400/600/800mm
Surface corrosion protection:Hot-dip galvanized (outdoor), electro-galvanized / electrostatic powder coated (indoor)
Accessories:Rails, rungs, suspension rods, floor supports, double-layer spacer uprights, and grounding fasteners
U-shaped steel open cable rack, available in single-tier/double-tier with multiple corrosion-resistant treatments, for organized fiber and network cable routing in indoor and outdoor communication equipment rooms.
Structure Type:Single-layer, double-layer
Standard Width:300/400/600/800mm
Surface treatment:Hot-dip galvanized (outdoor), electro-galvanized / electrostatic powder coated (indoor)
Standard accessories:Rails, rungs, suspension rods, floor supports, double-layer spacer uprights, and grounding fasteners
31×45 standard profile aluminum alloy cable rack, available in single-tier and double-tier, with stable load-bearing over a 1.5-meter span, for organized fiber and network cable routing in indoor communication equipment rooms.
Profile cross-section:31×45mm aluminum alloy
Structure Type:Single-layer, double-layer
Optional widths:300/400/600/800mm
Load-bearing performance:1.5-meter span: 5mm deformation at 150KG, 7mm deformation at 195KG
50×50 thickened aluminum alloy equipment room cable tray, available in single-tier/double-tier, load capacity ≥300KG per meter, for organized high-capacity fiber and cable routing in indoor equipment rooms
Profile specification:50×50mm aluminum alloy square tube
Structure Type:Single-layer, double-layer
Optional widths:300/400/600/800mm
Load-bearing performance:Load capacity ≥300KG per meter
Aluminum alloy open equipment room cable rack, available in single-tier/double-tier and multiple profile sizes, lightweight and high-strength, for organized routing of fiber, network, and power cables in indoor equipment rooms
Structural configuration:Single-layer and double-layer
Standard Width:300/400/600/800mm
Profile cross-section:31×45mm, thickness options of 4.3/4.5/5.0/5.4/6.0mm
Standard accessories:Main girders, cross-bars, hangers, floor supports, fasteners, and double-tier spacer columns (double-tier version only)
Riveted flat-steel open equipment room cable rack, available in single-tier/double-tier and multiple widths, with multiple corrosion-resistant treatments for indoor and outdoor use, for organized routing of fiber, network, and power cables in equipment rooms.
Structural configuration:Single-layer and double-layer
Standard Width:300/400/600/800mm
Surface treatment:Hot-dip galvanized (outdoor), electro-galvanized / electrostatic powder coated (indoor)
Standard accessories:Main girders, cross-bars, hangers, supports, fasteners, and double-tier spacer columns (double-tier version only)
Open metal cable rack assembled from angle steel, with strong load capacity and multiple tiered specifications, used for organized routing of fiber, power, and data cables in communication equipment rooms
Structure Type:Single-layer and double-layer configurations
Standard Width:300/400/600/800mm
Corrosion-resistant treatment:Hot-dip galvanized (outdoor), electro-galvanized / electrostatic powder coated (indoor)
Matching accessories:Main girders, cross-bars, hangers, floor supports, grounding fasteners, and double-tier spacer columns
U-shaped open galvanized mesh tray, lightweight with high heat dissipation, dedicated cable tray for laying network and power cables in data centers/communication equipment rooms
Main body model:U-series mesh tray, standard 3-meter sections sold by the meter
Base material:Q23 carbon steel, 201/304/316 stainless steel
Surface treatment:Electro-galvanized/powder-coated (indoor), hot-dip galvanized/polished stainless steel (outdoor)
Complete set of accessories:M16 hanger rods, cross supports, grounding bolts, corner reinforcement strips, end caps, drop-out plates, and clips
Lightweight perforated metal mesh structure for laying power and communication cables, used for cabling in data centers and communication equipment rooms
Main body model:T-series standard mesh tray
Matching accessories:Full set including cross-bar supports, M16 hanger rods, grounding bolts, corner reinforcement strips, and end caps
Connection method:Quick clip-together assembly allows corners, tees, and crosses to be freely formed on site
Installation method:Dual-use: ceiling suspension or wall bracket mounting
Fully enclosed metal trough body shields and protects cables, used for low-voltage cabling in corrosive equipment room environments
Structure:Fully enclosed trough body with optional matching cover plate
Height:Multiple sizes: 15/30/50/100/150mm
Width:Full size coverage from 50-600mm
Panel thickness:Optional thickened steel plate from 1.0-2.0mm

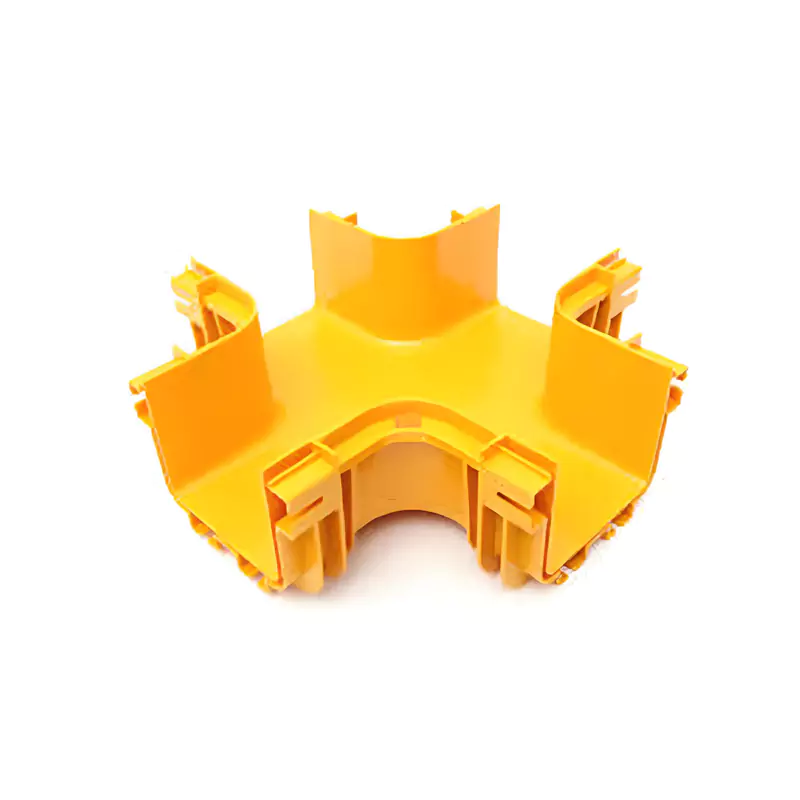

Low-smoke, halogen-free, flame-retardant ABS material for organized fiber protection, used for fiber cabling in communication equipment rooms
Material:ABS/PVC low-smoke, halogen-free flame-retardant plastic
Standard Width:120/240/360mm
Standard height:50/70/100mm
Accessories:Full set of straight sections, elbows, tees, crosses, fiber outlets, and support/hanging fittings
