01
DC stacked PV
Series module architecture with MPPT precision regulation to −48 V DC, matching existing telecom DC busbars.
Base Station Stacked PV System
Huijue’s base-station stacked PV system is built for PV capacity upgrades at telecom sites. An in-house stacked-PV MPPT controller regulates DC to the site −48 V bus, adding PV as supplemental power to cut grid use—ideal for lightweight energy-saving retrofits.
Solution Positioning
This lightweight PV capacity-upgrade package for base stations centers on DC stacked-PV series technology. PV modules, a stacked-PV MPPT controller, and a DC meter form a complete system that steps PV voltage down to standard −48 V DC without major rewiring. Controllers support wall-mount, pole-mount, and rack install in outdoor and rack-mount variants—quickly adding clean energy to existing sites for self-consumption and carbon reduction.
02
Multiple install options
Rack and outdoor wall-mount controllers support pole, tower, and cabinet mounting for flexible site fit.
03
Capacity expansion and savings
On-site PV self-consumption feeds loads first, sharply cutting grid draw and long-term electricity cost.
04
Simple retrofit
Lightweight modular hardware installs without major outages; short schedule and compatible with standard telecom DC power systems.
Applicable Site Types: Urban macro base stations / Mountain pole-mounted 5G micro sites / Existing high grid-consumption base stations / Tower-integrated compact base stations

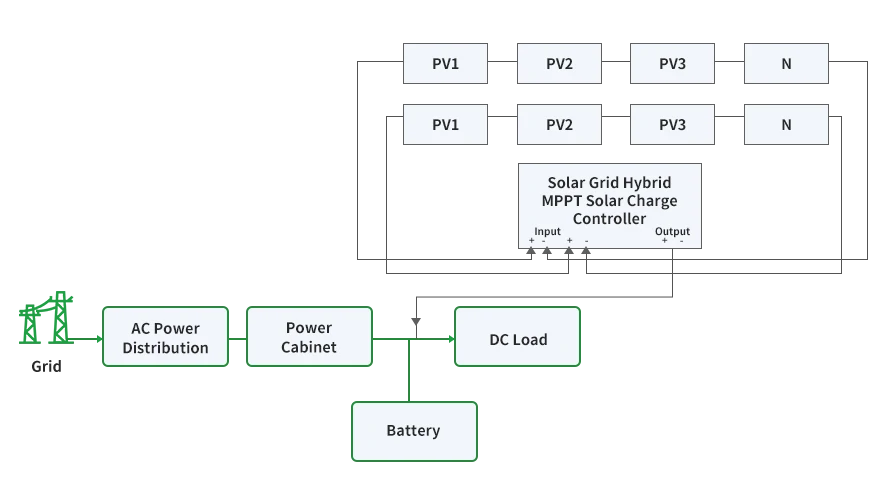

System Operation Logic
Multiple PV strings combine into a hybrid MPPT controller that feeds DC loads first and tops up the supporting battery bank.
Grid AC is converted via AC distribution and a power cabinet into standard DC as a backup supply path for continuous load power.
The system automatically coordinates PV and grid sources to maximize PV use and reduce grid electricity.
When irradiance is low, storage discharges to fill the gap and prevent telecom load outages.
Find the Right Energy Solution for Your Telecom Site
Our expert team provides customized solutions and full-lifecycle support
Related Products
View All Products
Five G Integrated Power
5G smart integrated power supply, highly integrated to resolve size, capacity, energy consumption, and monitoring issues, providing reliable DC power supply assurance for 5G sites.
Applicable sites:5G macro sites, small cell sites, micro sites
Core advantages:Solves issues of size, capacity, energy consumption, and monitoring
Power supply type:DC power supply
System features:Highly integrated design
Ac Power Distribution
Three-phase AC power distribution cabinet, powered by mains electricity, featuring triple protection against short circuit, overcurrent, and overvoltage, with remote status indication support, suitable for buildings and factory scenarios.
Power supply method:Three-phase, three-wire
Operating voltage:±10% (rated)
Operating frequency:50HZ
Protection functions:Short circuit/overcurrent/overvoltage
Low Voltage Switchgear
Modular low-voltage switchgear cabinet supporting mixed installation of withdrawable and fixed units, integrating power distribution and motor control functions, suitable for industrial power distribution scenarios.
Product Dimensions:(400-1200)×(600-1200)×2200mm
Operating Temperature:-5℃～55℃
Circuit configuration:S-type 36 circuits/U-type 48 circuits
Segregation class:Form 4b (GB7251.12-2013)
Outdoor Integrated Power
Outdoor integrated power supply with a die-cast aluminum enclosure rated IP65, modular assembly, and near-end APP monitoring support, suitable for 5G macro site, small cell site, and micro site scenarios.
IP Rating:IP65, fully enclosed natural heat dissipation
Enclosure material:Die-cast aluminum enclosure
Mounting:Supports wall-mounted and pole-mounted installation
Monitoring method:Near-end visual monitoring via mobile APP, remote operation and maintenance control
Indoor Pv Energy Cabinet
Indoor PV energy cabinet, floor-standing installation, providing clean and renewable PV energy for base station equipment, suitable for PV power distribution scenarios at communication base stations.
Mounting:Floor-standing
Energy type:Clean and renewable PV energy
Application:Power supply for communication base station equipment
Functional positioning:PV energy access and DC power distribution

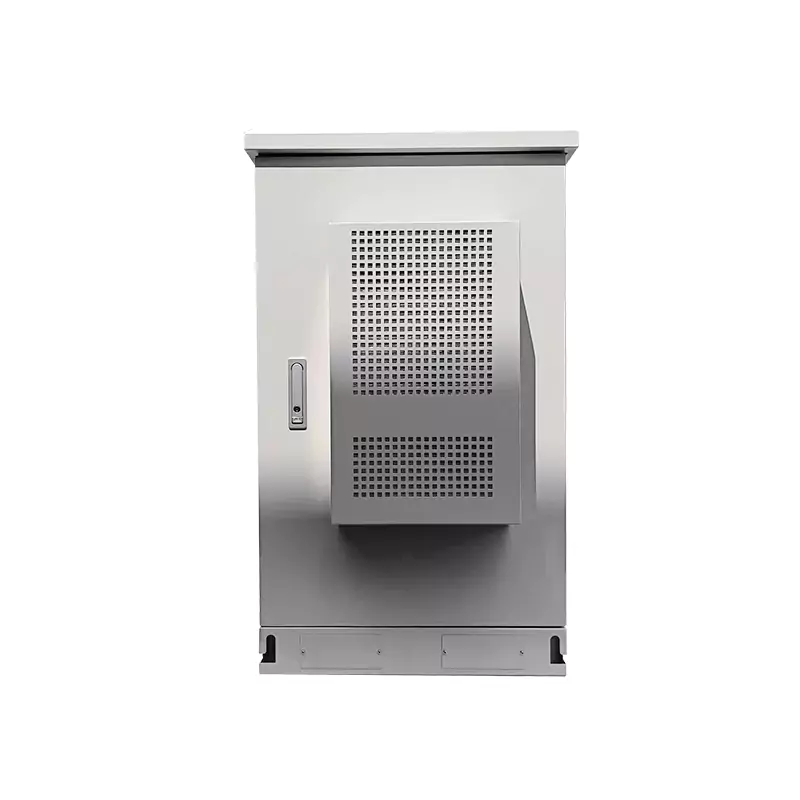

Outdoor Cab Twen U
