Power distribution products cover column head cabinets, power boxes, busbars, and HV/LV switchgear for telecom rooms, data centers, site energy, and industrial power scenarios.
AC row head cabinet for equipment rooms, using current transformers to collect three-phase power data, supporting multi-level alarm storage, and interfacing with equipment room DCIM/environmental monitoring systems via the Modbus protocol.
Rated Operating Voltage:380V three-phase AC
IP Rating:≥IP30
Operating Temperature:-5℃~55℃
Dimensions:600-1200 300-1200 2000-2600mm

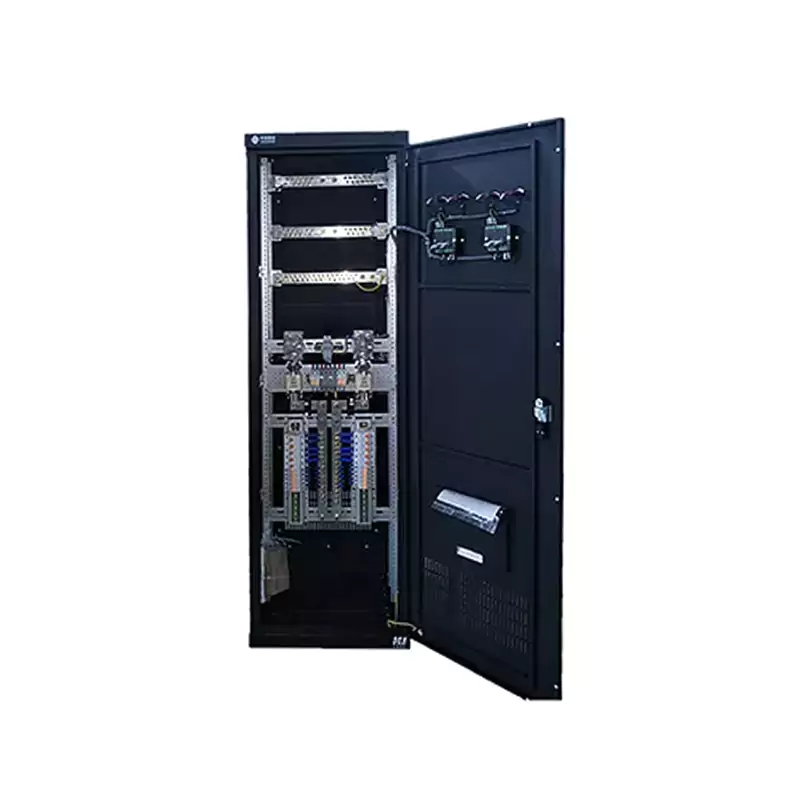

DC end-of-row cabinet integrating a battery bank, charging device, and DC feeder panel, supporting RS485 networking and four remote functions, suitable for DC power distribution scenarios in power plants and substations.
Product Dimensions:(400-1200)×(300-1200)×(2000-2600)mm
Operating Temperature:-5℃～55℃
System composition:Battery bank, charging device, DC feeder panel, monitoring device
Communication method:RS485, supports four remote functions
Data center smart mini busway with plug-and-play bus-architecture power distribution, supporting online insertion/removal without power interruption for maintenance, suitable for high-density data center power distribution scenarios.
Architecture:Bus architecture, full busway connection from UPS to PDU
Connection components:Connecting copper bars, feed-in box, tap-off box
Maintenance method:Maintenance-free, power distribution units are reusable
Installation feature:Plug-and-play; can be connected or disconnected without interrupting power to the busway

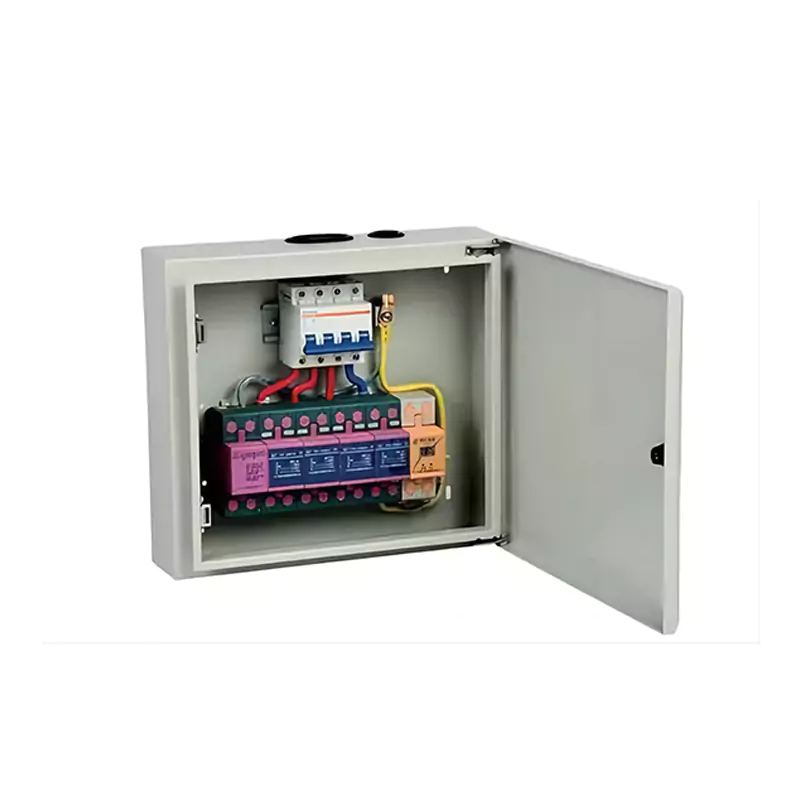

Lightning protection box supporting power indication, lightning protection failure indication, and automatic lightning strike counting, with a dual-power supply structure, suitable for communications, electric power, and transportation scenarios.
Operating Temperature:-5℃～55℃
Enclosure protection:Waterproof, fireproof, and moisture-proof
Power supply structure:Dual power supply
Alarm function:Degradation alarm/lightning strike counting
Three-phase AC power distribution cabinet, powered by mains electricity, featuring triple protection against short circuit, overcurrent, and overvoltage, with remote status indication support, suitable for buildings and factory scenarios.
Power supply method:Three-phase, three-wire
Operating voltage:±10% (rated)
Operating frequency:50HZ
Protection functions:Short circuit/overcurrent/overvoltage

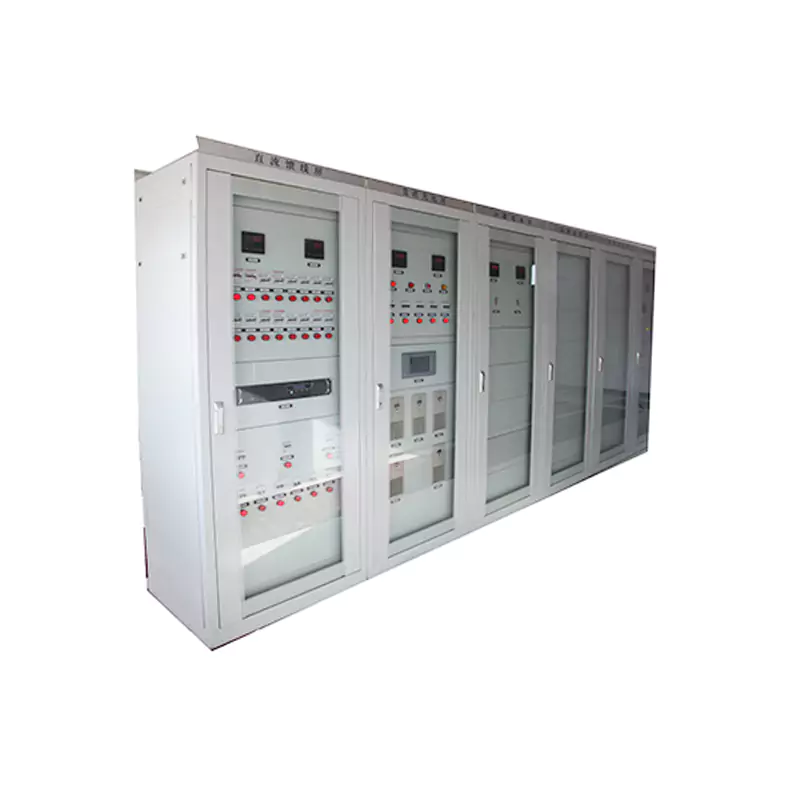

DC power distribution cabinet integrating a battery bank, charging device, and DC feeder panel, supporting RS485 networking and four remote functions (telemetry, telecontrol, telesignaling, and teleadjustment), suitable for power plant and substation scenarios.
Product Dimensions:Customizable
Operating Temperature:-5℃～55℃
Communication method:RS485
Monitoring function:Insulation monitoring/battery inspection

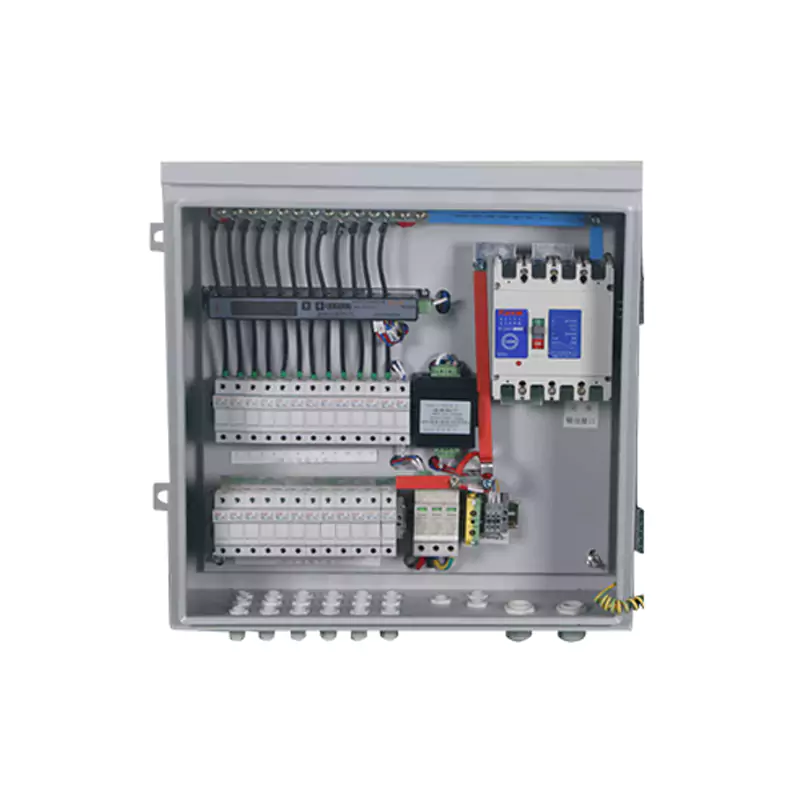

PV lightning-protection DC combiner box with integrated fuses, surge arresters, and parameter acquisition, covering a voltage range of 100VDC to 1000VDC, suitable for PV power station scenarios.
Voltage range:100VDC～1000VDC
Current range:10A～160A
Enclosure finish:Electrostatic spray coating
Sealed design:Fully sealed cable entry holes
PV AC grid-connected power distribution cabinet with integrated lightning protection, anti-islanding protection, and a visible isolation switch disconnect point, suitable for PV grid-connected power generation scenarios.
Lightning protection:Input surge arrester
Metering method:Sealed energy meter
Monitoring interface:RS485 (optional)
Safety configuration:Visible isolation switch disconnect point
Dual-power automatic transfer switch cabinet with a flame-retardant degreased fiber insulated switch body, supporting automatic switching between main and backup power, suitable for emergency power supply scenarios.
Product Dimensions:(400-1200)×(600-1200)×2200mm
Operating Temperature:-5℃～55℃
Insulation material:Flame-retardant degreased fiber
Applicable standard:GB/T2820
Outdoor integrated power cabinet with integrated batteries, rectifiers, and AC/DC power distribution, equipped with a 200A rectifier power supply, suitable for communication base station scenarios.
Product Dimensions:2000×700×700mm
IP Rating:IP55 (outdoor air-conditioned type)
Static load capacity:≥1200kg (floor-standing)
Panel material:2.0mm aluminum-zinc coated sheet (uprights)

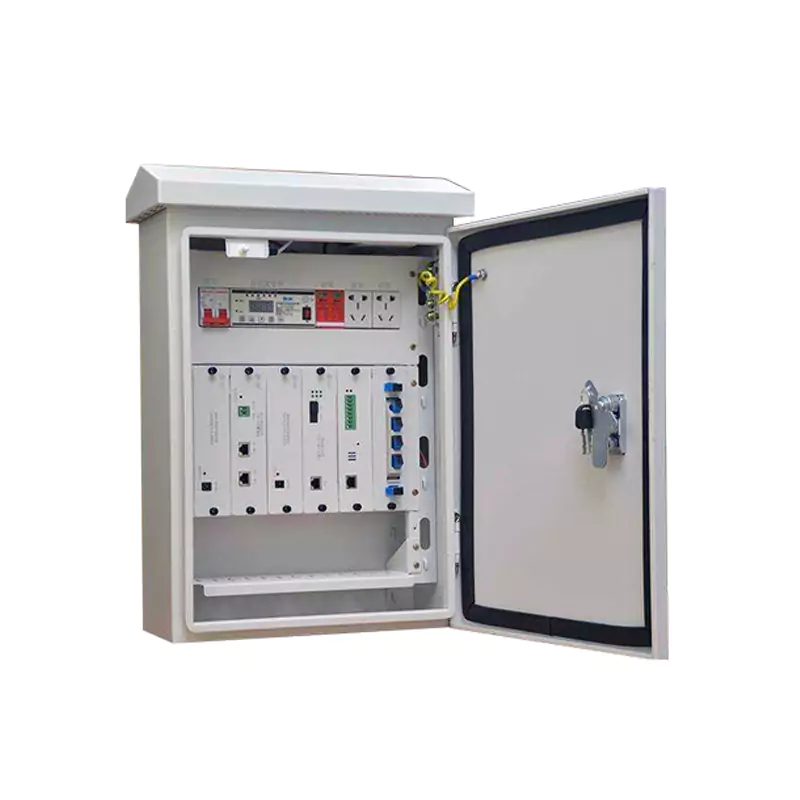

Two-stage distribution power control box with a high-quality cold-rolled steel enclosure, integrating Class C and D surge arresters and lightning strike counting, suitable for highway scenarios.
Power distribution method:Two-stage distribution
Mounting:Wall-mounted/19-inch rack
Enclosure material:High-quality cold-rolled steel sheet
Lightning protection configuration:Class C/D optional

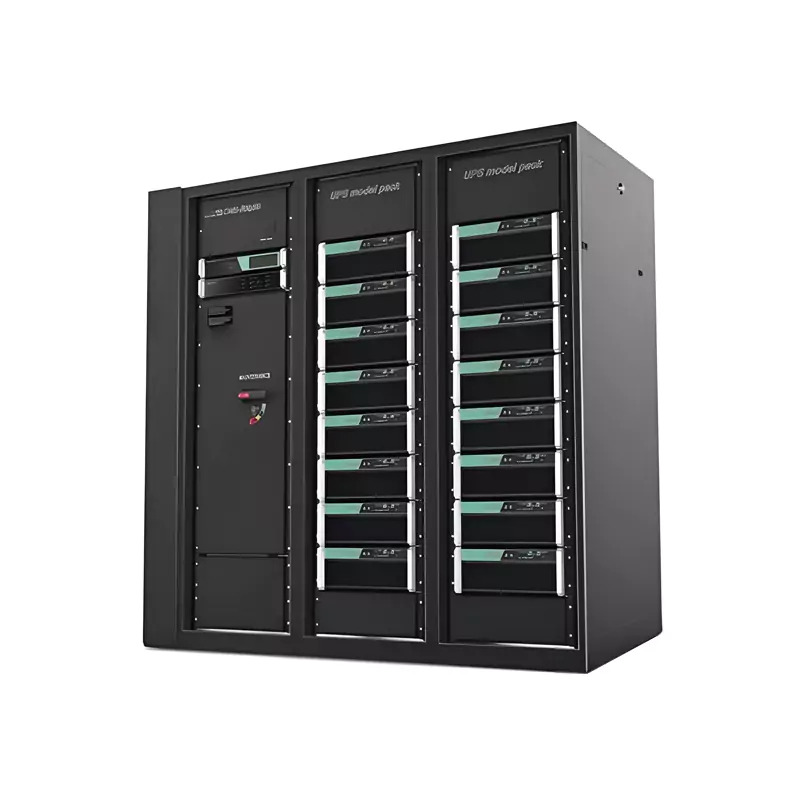

Standardized prefabricated UPS power distribution cabinet supporting hot-swappable miniature circuit breakers and three-phase load balancing adjustment, suitable for data center power distribution scenarios.
Product Dimensions:(400-1200)×(350-800)×(400-2200)mm
Operating Temperature:-5℃～55℃
Input type:Dual-power switching
Safety design:Front and rear panel isolation
Six-sided insulated phase-change energy storage thermostatic box with a heat transfer coefficient of no more than 0.3W/(m²·K), supporting passive temperature control and remote monitoring, suitable for base station battery scenarios.
Heat transfer coefficient:≤0.3W/(㎡·K)
IP Rating:IP45
Temperature rise control:≤5°C within 6h (no heat source)
Energy saving rate:Up to 40% for equipment room air conditioning

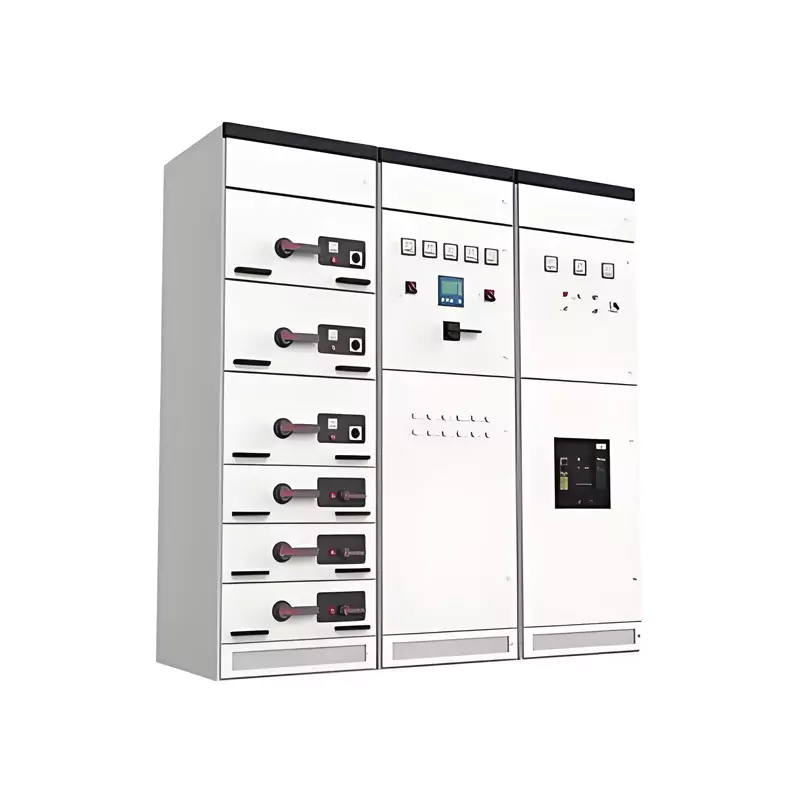

Modular low-voltage switchgear cabinet supporting mixed installation of withdrawable and fixed units, integrating power distribution and motor control functions, suitable for industrial power distribution scenarios.
Product Dimensions:(400-1200)×(600-1200)×2200mm
Operating Temperature:-5℃～55℃
Circuit configuration:S-type 36 circuits/U-type 48 circuits
Segregation class:Form 4b (GB7251.12-2013)
