Battery Thermostat Box
Product Overview
The thermostatic box features a six-sided insulation layer design, with the panel material and combined structure achieving an overall heat transfer coefficient of no more than 0.3W/(m²·K), working together with phase-change material modules to achieve long-term passive automatic temperature control. Under conditions of 35°C external ambient temperature and no internal heat source, the internal temperature rise does not exceed 5°C within 6 hours. It adopts a shelter-type structure with a door that can be easily opened or removed, supporting online maintenance. Equipped with a hydrogen exhaust device, it meets the safety requirements of GB/T19638.2-2005, with a protection rating of IP45 and non-combustible enclosure material. It features a remote monitoring port for high-temperature fault and fire alarms, as well as interlocking with equipment room air conditioning.
- Heat transfer coefficient:
- ≤0.3W/(㎡·K)
- IP Rating:
- IP45
- Temperature rise control:
- ≤5°C within 6h (no heat source)
- Energy saving rate:
- Up to 40% for equipment room air conditioning
Key Advantages
Flexible expansion
Supports parallel connection of multiple cabinets for smooth capacity expansion
Application Scenarios
Communication Base Station
Supports installation, power supply, wiring and protection for base station equipment

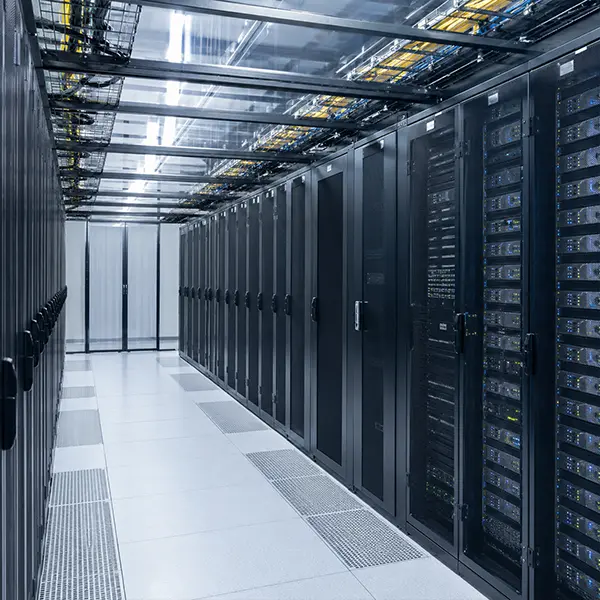

Data Center
Ensure stable operation of cabinets, power distribution, cabling and key equipment

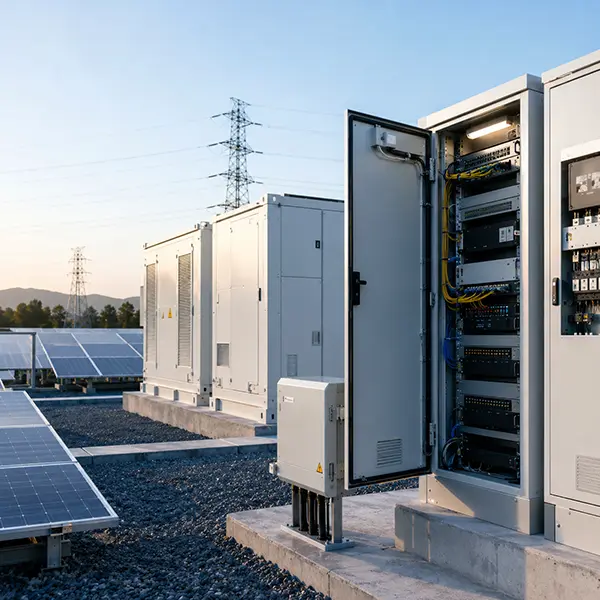

New Energy Power Supporting Equipment
Applicable to communication, power distribution and protection for energy applications
Low-Voltage Systems for Campus and Buildings
Supports access and management for park and building low-voltage systems
