01
Highly integrated
Combines power, distribution, storage, monitoring, and fiber distribution so one unit covers core functions.
Minimalist Communication Station
The minimalist communication station is a highly integrated photoelectric power system combining power, distribution, lithium battery, monitoring, and fiber splicing modules. It delivers standard −48 V DC with wall- or pole-mount install for micro-site power, backup, and fiber access.
Solution Positioning
Built for 5G micro sites and small remote telecom nodes, this lightweight integrated power-and-backup unit uses grid as primary supply with lithium backup. It integrates AC/DC distribution, surge protection, FSU monitoring, and splice trays in a compact chassis—no equipment room or cabinet required, wall-mounted on the tower to cut civil and equipment cost for standardized small-capacity sites.
02
Compact and easy to install
Small form factor with pole or wall mounting—fast install without a dedicated equipment room.
03
Backup assurance
Built-in lithium backup keeps micro-site telecom gear online during grid outages.
04
High protection and fit
Outdoor surge protection for rooftop and mountain pole small 5G micro-site scenarios.
Applicable Site Types: Urban 5G micro base stations / Rooftop integrated micro sites / Suburban pole-mounted small cells / Expanded minimalist remote telecom sites

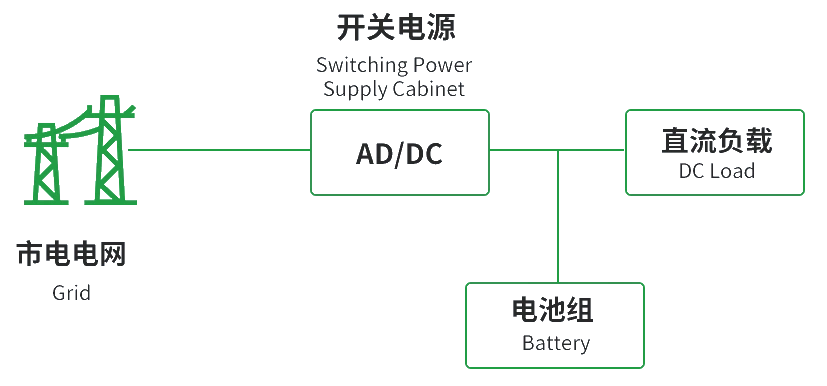

System Operation Logic
Grid AC enters the switch-mode power supply, converts via AC/DC to standard DC, and feeds DC loads directly.
During normal supply, the power supply float-charges the battery bank to keep full reserve.
On grid loss, the battery bank seamlessly outputs DC to keep loads powered without interruption.
