01
Five-source collaboration
Compatible with PV, wind, grid, diesel, and storage; intelligent dispatch prioritizes renewables.
Hybrid Energy Communication Site
The hybrid energy communication site solution combines PV, wind, grid, diesel, and storage with a full AC/DC power portfolio to build an intelligent hybrid distribution system—automatic multi-source dispatch, uninterrupted base-station power, and lower energy use.
Solution Positioning
This multi-source complementary energy system for telecom base stations covers indoor and outdoor power hardware with a hybrid energy control system managing PV, wind, grid, diesel, and storage—handling charge/discharge, load switching, and remote monitoring. It fits off-grid, weak-grid, and high wind/solar resource sites, solving unstable supply, high fuel cost, and heavy operations while advancing clean site energy upgrades.
02
Complete hardware set
In-house indoor/outdoor hybrid power cabinets, integrated power systems, and stacked-PV MPPT controllers—modular and flexible.
03
Uninterrupted power
Storage peak-shaves; on grid loss, wind/solar or diesel switch automatically to keep telecom loads stable.
04
All-scenario readiness
High-protection, wide-temperature design for rapid deployment at mountain, desert, and island remote sites.
Applicable Site Types: Remote base stations with rich wind/solar resources / Suburban macro sites with weak grid / Off-grid telecom sites without grid power / Existing sites needing diesel reduction and decarbonization

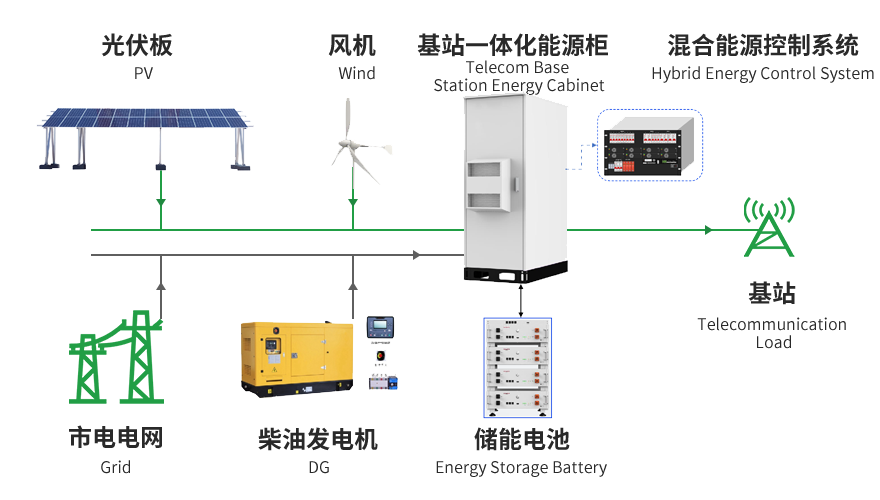

System Operation Logic
The hybrid energy control system is the dispatch core, coordinating multi-source operation.
PV panels and wind turbines produce clean DC that feeds the integrated energy cabinet first; surplus charges the storage battery.
Grid and diesel gensets serve as AC backup and switch in automatically when wind/solar output is insufficient.
Storage discharges during no-sun/no-wind periods; intelligent multi-source switching keeps the base station powered continuously.
Find the Right Energy Solution for Your Telecom Site
Our expert team provides customized solutions and full-lifecycle support
Related Products
View All Products
Ac Dc Power Module
AC-to-DC module with natural heat dissipation and high reliability, input 90-290Vac, output 0-16A, suitable for AC-to-DC power supply scenarios at communication base stations.
Input voltage:90-290Vac
Output current:0-16A
Operating Temperature:-25℃～55℃
Mounting:Wall-mounted and clamp-mounted installation
Dual Layer Fan Cabinet
10-14U dual-layer outdoor fan-cooled cabinet made of metal panels, with fan cooling, integrating power distribution, monitoring, temperature control, and lightning protection, suitable for outdoor applications at small sites.
Specifications:10-14U
Main Material:Premium metal sheet
Cooling Method:Fan cooling
Integrated Functions:Equipment, power distribution, monitoring, temperature control, and lightning protection grounding
Outdoor Integrated Power
Outdoor integrated power supply with a die-cast aluminum enclosure rated IP65, modular assembly, and near-end APP monitoring support, suitable for 5G macro site, small cell site, and micro site scenarios.
IP Rating:IP65, fully enclosed natural heat dissipation
Enclosure material:Die-cast aluminum enclosure
Mounting:Supports wall-mounted and pole-mounted installation
Monitoring method:Near-end visual monitoring via mobile APP, remote operation and maintenance control
Wall Mount Power System
Integrated wall-mounted power system with a standardized, compact design for easy installation, high integration, and stable output, suitable for DC power supply scenarios at communication base stations.
Mounting:Standardized wall-mounted design
Structural features:Integrated, compact design with high integration
Reliability:Close-fitting components reduce wiring and improve system reliability
Output characteristics:Stable power output
Ac Header Cabinet
AC row head cabinet for equipment rooms, using current transformers to collect three-phase power data, supporting multi-level alarm storage, and interfacing with equipment room DCIM/environmental monitoring systems via the Modbus protocol.
Rated Operating Voltage:380V three-phase AC
IP Rating:≥IP30
Operating Temperature:-5℃~55℃
Dimensions:600-1200 300-1200 2000-2600mm
UPS Power Distribution
Standardized prefabricated UPS power distribution cabinet supporting hot-swappable miniature circuit breakers and three-phase load balancing adjustment, suitable for data center power distribution scenarios.
Product Dimensions:(400-1200)×(350-800)×(400-2200)mm
Operating Temperature:-5℃～55℃
Input type:Dual-power switching
Safety design:Front and rear panel isolation
Outdoor Ac Dc Power
Outdoor AC-to-DC power supply with a die-cast aluminum enclosure rated IP65, integrated lightning and surge protection, supporting wall-mounted and pole-mounted installation, suitable for outdoor power supply scenarios at micro sites.
IP Rating:IP65, die-cast aluminum enclosure with natural heat dissipation
Mounting:Wall-mounted, pole-mounted installation
Protection functions:Surge protection at input and output ends
Output characteristics:DC 48V, high power density
Single Fan Outdoor Cab
10-14U single-layer outdoor fan-cooled cabinet made of metal panels with fan cooling, integrating power distribution, monitoring, temperature control, and lightning protection, suitable for outdoor applications at small sites.
Specifications:10-14U
Main Material:Premium metal sheet
Cooling Method:Fan cooling
Integrated Functions:Equipment, power distribution, monitoring, temperature control, and lightning protection grounding
