Outdoor Ac Dc Power

Outdoor Ac Dc Power
Outdoor Ac Dc Power

Product Overview

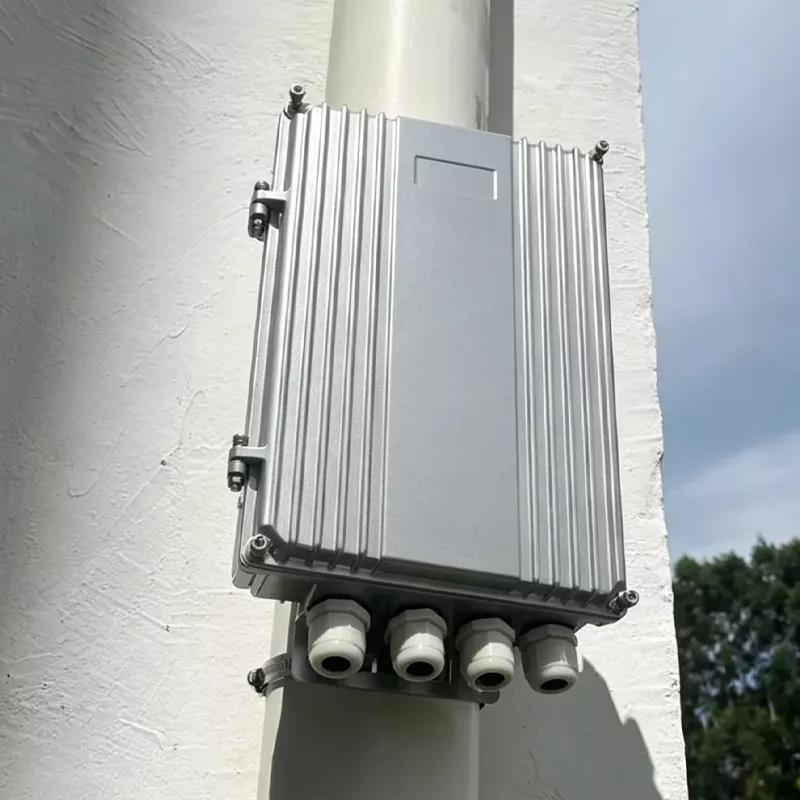

The outdoor AC-to-DC power supply integrates a power board, AC/DC power distribution, lightning protection devices, and other components, providing 48V DC power to communication equipment. The system uses a die-cast aluminum enclosure design with good natural heat dissipation performance, rated IP65, with a top that does not accumulate water. It offers advantages such as high power density, stable overall performance, and a compact, lightweight design. Surge protection is installed at both the input and output ends. It supports various installation methods including wall-mounted and pole-mounted, suitable for a variety of indoor and outdoor environments. The product is stable and reliable in performance, and is widely used in communication network construction and operation and maintenance.

IP Rating:
IP65, die-cast aluminum enclosure with natural heat dissipation
Mounting:
Wall-mounted, pole-mounted installation
Protection functions:
Surge protection at input and output ends
Output characteristics:
DC 48V, high power density
Live Chat Request Brochure

Key Advantages

Die-cast aluminum, IP65 protection

Die-cast aluminum technology provides natural heat dissipation, rated IP65, with a top that does not accumulate water, suited to harsh outdoor environments

Multiple installation methods

Supports wall-mounted and pole-mounted installation, suitable for a variety of indoor and outdoor deployment environments

Surge protection

Surge protection is installed at both the input and output ends, ensuring equipment safety

High power density

High power density, compact, and lightweight, facilitating deployment and maintenance at outdoor sites

Outdoor Ac Dc Power

Application Scenarios

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Unattended Outdoor Base Station Sites

Unattended Outdoor Base Station Sites

Suitable for long-term stable operation in complex outdoor environments

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Technical Specifications

Model HJDZY048-1000W
Capacity 1000W
Dimensions 280*200*80(mm)
Weight ≤4kg
Input Interface 1 x 220Vac
Output Interface 40A*3,48Vdc

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
