Outdoor Integrated Power

Outdoor Integrated Power
Outdoor Integrated Power
Outdoor Integrated Power

Product Overview

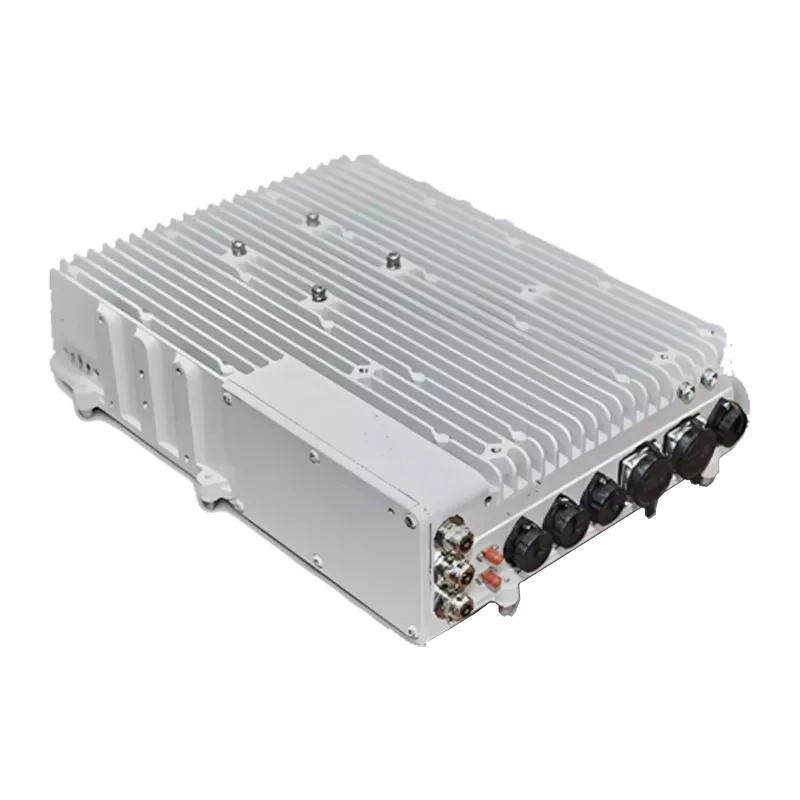

The new-generation outdoor integrated power supply is a distributed, highly integrated DC power supply solution launched for 5G communication base stations. The system integrates the power board, AC/DC power distribution, lightning protection devices, monitoring, and wireless communication functions, providing 48V DC power to communication equipment. It adopts a modular assembly structure, with a die-cast aluminum enclosure that is lightweight, attractive, and has strong heat dissipation capability, rated IP65. It supports flexible modular assembly and expansion, intelligent DC load management, and near-end visual monitoring and remote operation and maintenance control via mobile APP.

IP Rating:
IP65, fully enclosed natural heat dissipation
Enclosure material:
Die-cast aluminum enclosure
Mounting:

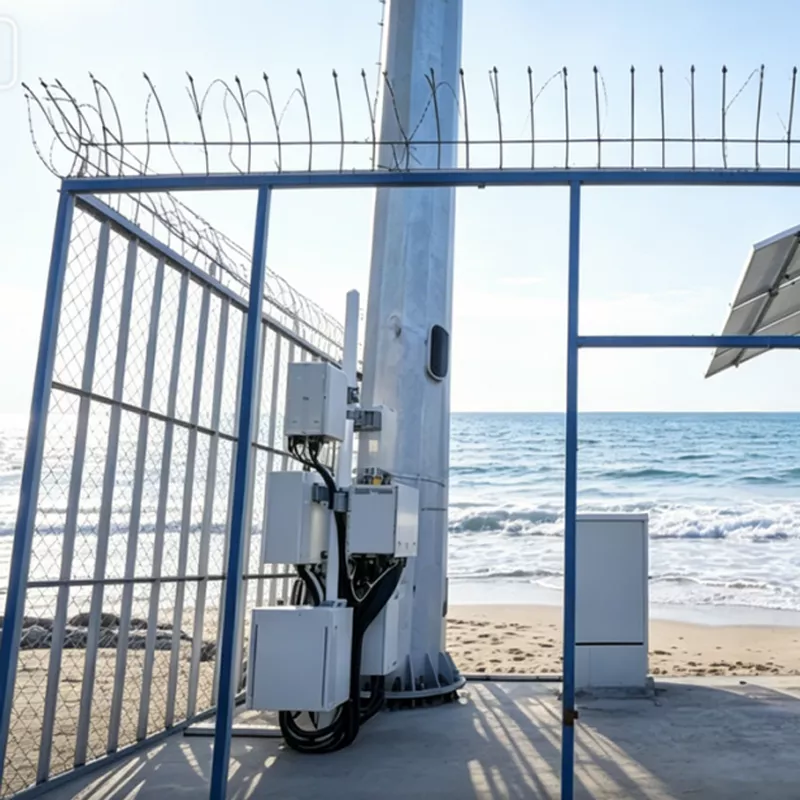

Supports wall-mounted and pole-mounted installation
Monitoring method:
Near-end visual monitoring via mobile APP, remote operation and maintenance control
Live Chat Request Brochure

Key Advantages

Die-cast aluminum, IP65 protection

The die-cast aluminum enclosure is fully enclosed with natural heat dissipation, rated IP65, with a top that does not accumulate water, suited to harsh outdoor environments

Modular assembly and expansion

The modular assembly structure design supports flexible modular assembly and expansion, configurable as needed

Smart load management

Intelligent DC load management, supporting remote disconnection, branch reclosing, and independent branch metering

Visual APP-based operation and maintenance

Supports near-end visual monitoring via mobile APP and remote operation and maintenance control, enabling efficient on-site inspection

Outdoor Integrated Power

Application Scenarios

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Unattended Outdoor Base Station Sites

Unattended Outdoor Base Station Sites

Suitable for long-term stable operation in complex outdoor environments

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Technical Specifications

Category Data Parameter
Model HJ048(1kW) HJ048(2kW) HJ048(3kW) HJ048(6kW) HJ04820L HJ04850L
Capacity 1000W 2000W 3000W 6000W 20Ah/960Wh 50Ah/2400Wh
Dimensions 367*483*175(mm) 400*305*75(mm) 442*342*100(mm) 425*310*121（mm） 425*310*170(mm)
Weight ≤33kg ≤9kg ≤16kg 20Kg 30Kg
Battery Capacity 20Ah Used together with modular assembled battery 1200 charge cycles (default 5A charging) 1200 charge cycles (default 5A charging)
Output Power Distribution DC output: 3 x 40A DC output: 3 x 40A
Battery port/parallel port: 1 x 60A		 DC output: 7 x 40A
Battery port/parallel port: 2 x 125A		 2×60A Aviation Connector 2×60A Aviation Connector

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
