Telecom equipment, power distribution systems, and energy infrastructure products

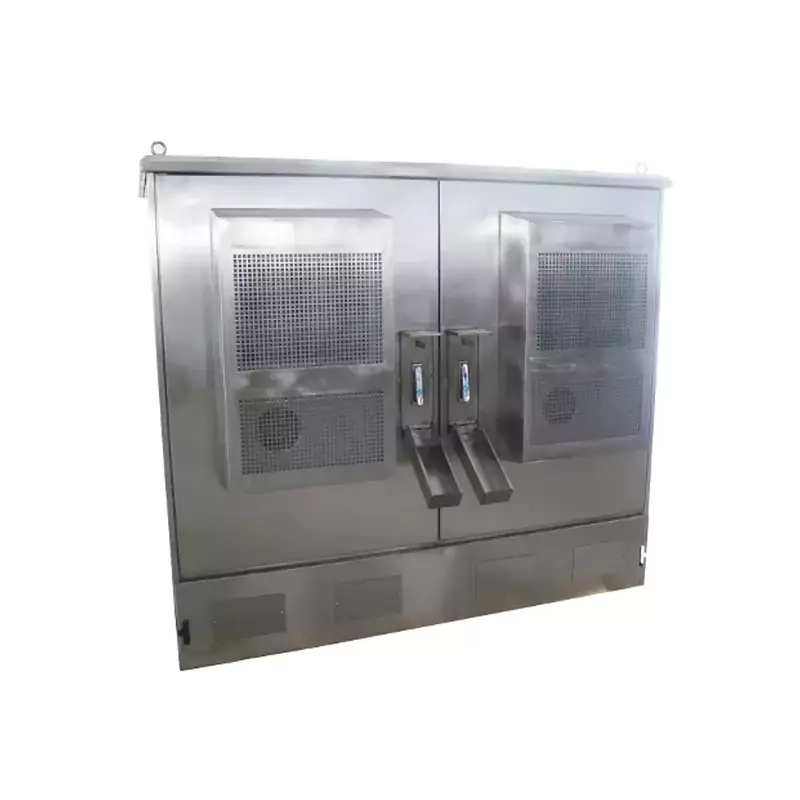

Outdoor battery cabinet with indoor/outdoor floor options; 30/50KWh storage for outdoor base-station backup.
Model:HJ-CBI/CBO-030/050-W
Max Capacity:30KWh / 50KWh
Ingress Protection:IP54/IP55/IP65 optional
Application:Indoor / outdoor floor-standing

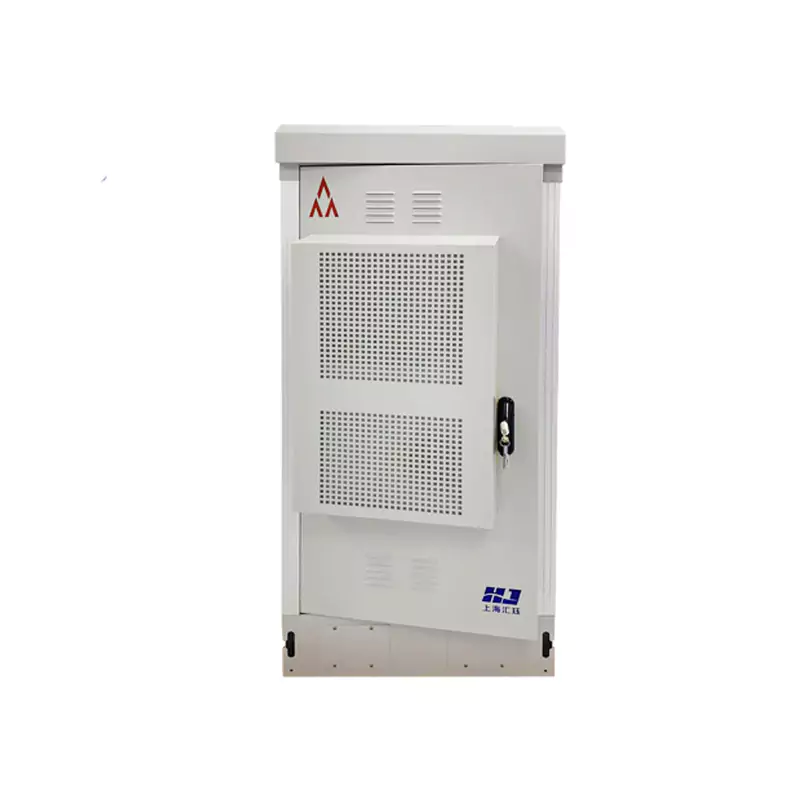

Site battery cabinet with 15–50KWh modular storage; wall/pole/floor mount for base-station backup.
Model:HJ-ZB15～HJ-ZB50
Storage Capacity:15KWh～50KWh
Cycle Life:Up to 6000 cycles
Installation:Wall / pole / floor
PV micro-site energy cabinet with grid/PV/storage integration; wall/pole mount for micro-site power.
Model:HJ-SZ03-05
System Power:3KW(max 6KW)
Storage Capacity:5KWh
Installation:Wall / pole mount
Ultra-simple outdoor power box with integrated power-optics; wall/pole mount for outdoor AC-to-DC site power.
Model:HJDUM01-048(5000W/9000W)
System Capacity:5000W / 9000W
Output Voltage:DC 48V
Ingress Protection:IP55
Outdoor hybrid energy cabinet with AC/DC + wind/PV/storage dispatch; pole or floor mount for outdoor site hybrid power.
Model:HJ-CHO-06005-W～HJ-CHO-36080-W
Power Capacity:6KW～36KW
Storage Capacity:5KWh～80KWh
Installation:Outdoor pole-mount / floor-standing
Satellite communication energy cabinet with off-grid PV storage integration for stable site power.
Model:HJ-PS-0105K / HJ-PS-0315K
System Capacity:1000W / 3000W
Output Voltage:DC 48V / AC 110V
Ingress Protection:IP55/IP20
Indoor hybrid energy cabinet with integrated AC/DC, PV, and storage dispatch; floor-mounted for indoor rooms and site hybrid power.
Model:HJ-CHI-18030-W / HJ-CHI-36040-W
Power Capacity:18KW(300A) / 36KW(600A)
Storage Capacity:30KWh / 40KWh
Installation:Indoor floor-standing
Hybrid power-fiber cable integrating fiber and power for BBU–RRU DC remote powering and direct burial.
Positioning:Hybrid power-fiber integrated cable
Typical Application:Distributed base-station DC remote powering
Connection:BBU and RRU
Installation:Suitable for direct burial
Stranded loose-tube non-armored cable with anti-shrinkage core and UV-resistant PE jacket for duct and aerial routes.
Construction:Stranded loose-tube non-armored
Fiber Protection:Special jelly in tubes
Structural Feature:Compact core prevents tube shrinkage
Jacket Performance:PE jacket UV resistant
FRP-strengthened armored flame-retardant cable with FRP and steel-tape armor for lightning-sensitive and flame-retardant routes.
Central Strength:Single non-metallic FRP strength member
Armor:Double-coated steel tape (PSP)
Moisture Barrier:Coated aluminum tape (APL)
Flame Retardance:Flame-retardant jacket material
Stranded loose-tube armored cable with jelly fiber protection for direct-buried and duct armored routes.
Construction:Stranded loose-tube
Protection:Standard armor
Fiber Protection:Special jelly in tubes
Features:Excellent mechanical and temperature performance
Central tube light-armored cable with PSP steel tape and parallel steel wires for duct and aerial light-armored routes.
Construction:Central tube loose-tube structure
Armor:Double-coated steel tape (PSP)
Strength Design:Two parallel steel wires
Features:Small diameter, light weight, easy to install
Central tube flame-retardant cable with PSP steel tape and parallel steel wires for building and duct flame-retardant routes.
Construction:Central tube loose-tube structure
Flame Retardance:Special flame-retardant jacket material
Strength Design:Two parallel steel wires + double-coated steel tape
Features:Small diameter, light weight, easy to install
Indoor single-mode / multimode optical cable with LSZH jacket and customizable fiber count for duct and tray routes.
Product Type:Indoor cable GJBFJH/GJBFJV
Fiber Type:SM G652D/G657A; MM OM1–OM4
Fiber Count:2–288 fibers customizable
Jacket Material:LSZH (standard) / PVC (optional)
ADSS all-dielectric self-supporting cable for live-line installation, long spans, and tracking resistance on joint-pole aerial routes.
Installation:Live-line installation capable
Jacket Option:AT jacket for tracking resistance
Span Capability:Maximum span over 1000 m
Expected Life:Over 30 years
FTTA remote base station cable with dual-fiber SM tight buffer and aramid yarn for 4G/5G remote radio links.
Fiber Type:G.652D / G.657A1 / A2 optional
Operating Wavelength:1310nm, 1550nm
Operating Temperature:-40℃～+75℃
Ingress Protection:Finished connector IP67/IP68
GJXH metallic drop cable with phosphated steel reinforcement and easy strip for FTTH building drops.
Model:GJXH – up to 4 fibers
Strength Member:Two parallel phosphated steel strength members
Dimensions:2.0mm×3.0mm
Network:FTTH/FTTO/FTTB
GJXFH non-metallic drop cable with FRP reinforcement—lightweight and easy to duct for indoor FTTH drops.
Model:GJXFH – up to 4 fibers
Strength Member:Two parallel FRP non-metallic strength members
Dimensions:2.0mm×3.0mm
Network:FTTH/FTTO/FTTB
GJYXCH self-supporting metallic drop cable with phosphated steel strength members and messenger for FTTH drops.
Model:GJYXCH – up to 4 fibers
Strength Member:Two parallel phosphated steel strength members
Messenger:Single steel messenger wire
Dimensions:2.0mm×5.0mm
MPO multimode 12-fiber cable with OM4 pre-termination and LC fan-out for indoor high-density fiber cabling.
Interface Type:MPO/UPC to LC fan-out
Fiber Count:12 fibers (customizable 2–288)
Fiber Type:Multimode OM4
Operating Temperature:-40℃～+60℃
