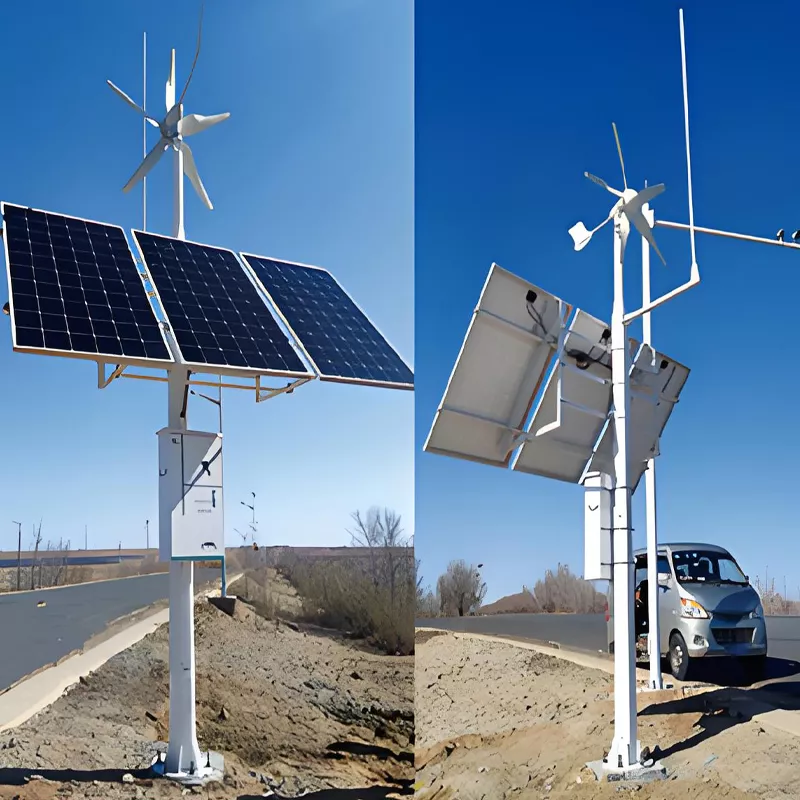

PV Micro-site Energy Cabinet

PV Micro-site Energy Cabinet
PV Micro-site Energy Cabinet
PV Micro-site Energy Cabinet
PV Micro-site Energy Cabinet

Product Overview

The PV Micro-site Energy Cabinet targets base-station micro-sites, covering power supply, backup, and optical network access for communication equipment. It supports grid, PV, and storage inputs, with optional wind generation, inverter output, and 12V output. The outdoor wall/pole-mount structure enables fast micro-site deployment; an integrated monitoring unit supports NB/5G wireless O&M access, with space reserved for a splice tray and passive WDM. Stable and reliable for telecom network construction and O&M.

Model:
HJ-SZ03-05
System Power:
3KW(max 6KW)
Storage Capacity:
5KWh
Installation:
Wall / pole mount
Live Chat Request Brochure

Key Advantages

Low Carbon & Energy Saving

Introduces PV, wind, and other green sources to cut grid consumption and carbon emissions

Simple Installation

Wall and pole mounting for fast outdoor micro-site deployment

Smart O&M

Integrated monitoring with NB/5G wireless access to O&M platforms

Flexible Multi-source Access

Configurable PV, wind generation, inverter output, and 12V output for diverse power needs

PV Micro-site Energy Cabinet

Application Scenarios

New Energy Power Supporting Equipment

New Energy Power Supporting Equipment

Applicable to communication, power distribution and protection for energy applications

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Technical Specifications

ModelHJ-SZ03-05
Power3KW(max 6KW)
Max Storage Capacity5KWh
Energy Input/OutputGrid / PV / Storage
EnvironmentOutdoor
InstallationWall / pole mount
Dimensions700mm*550mm*400mm

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
