| Parameter | Specification |
| Fiber Type | Standard G.652D single-mode fiber; optional G.657A1/A2 bend-insensitive fiber |
| Operating Wavelength | 1310nm, 1550nm; supports 4G/5G CPRI and eCPRI transmission |

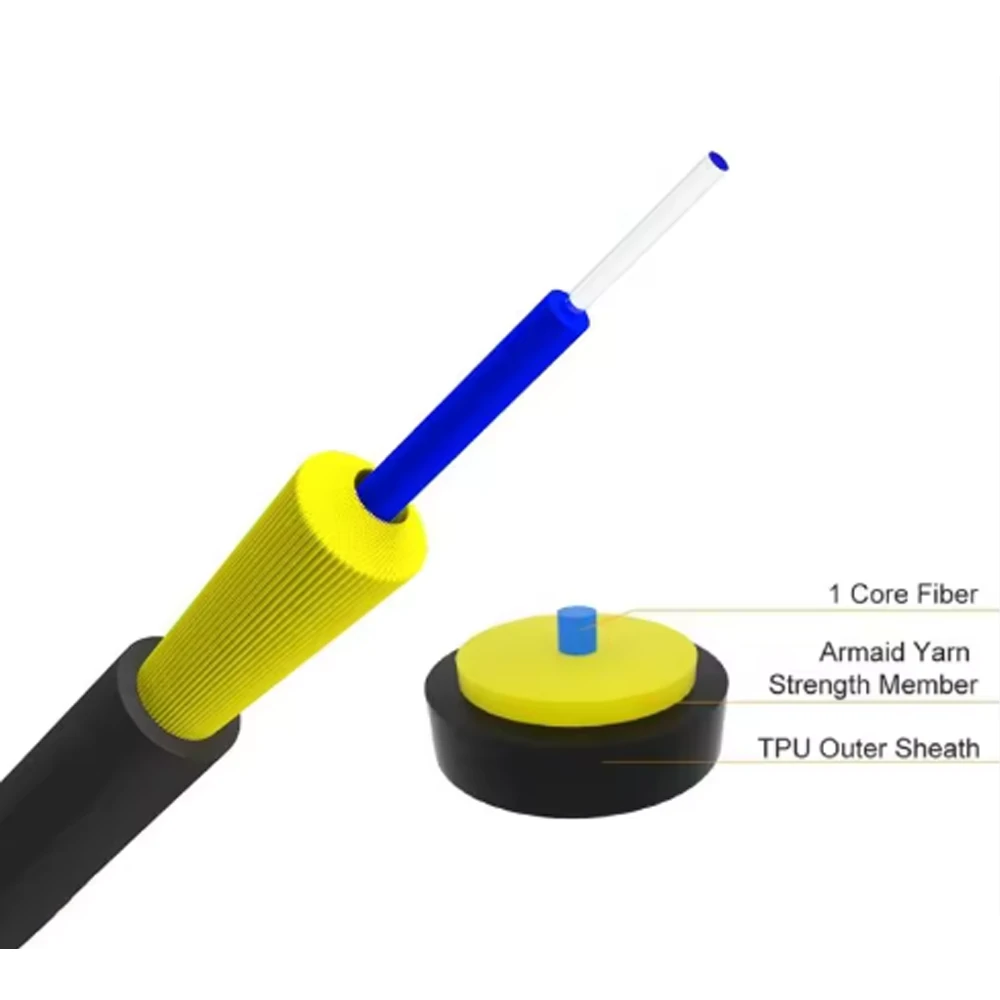

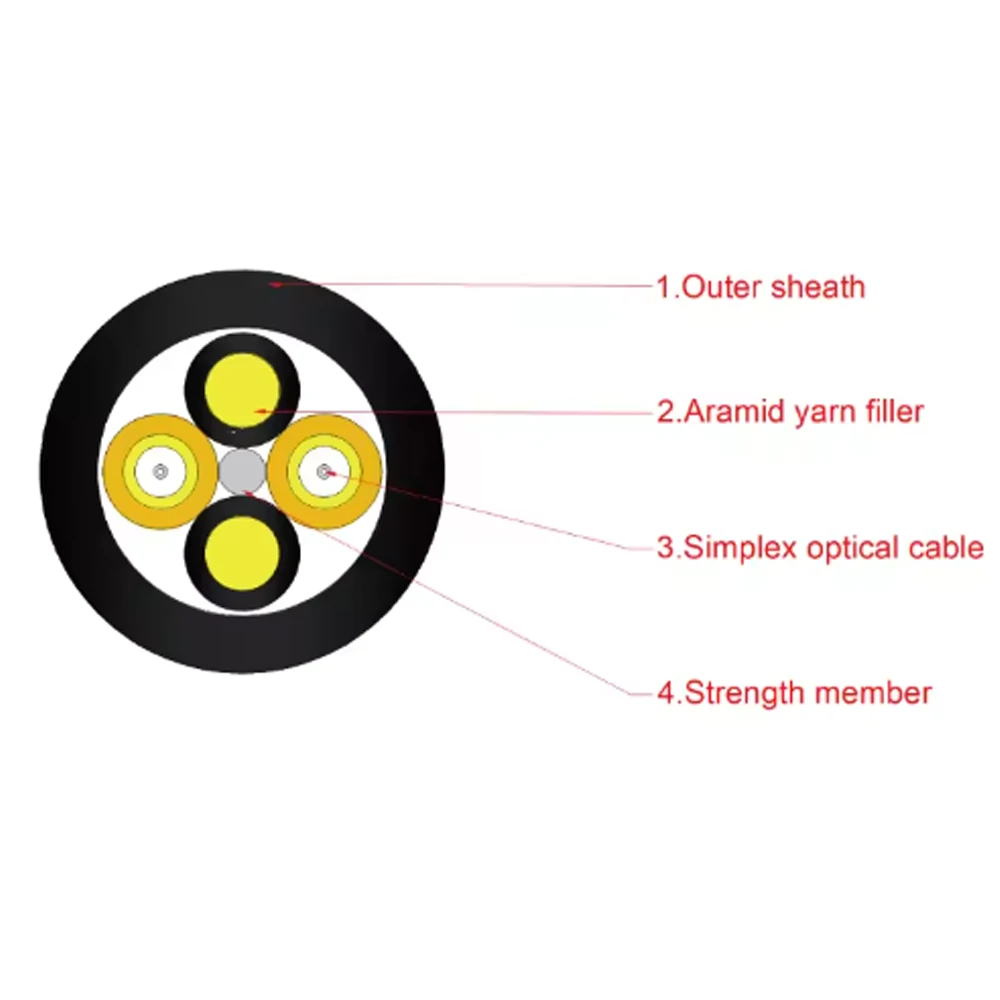

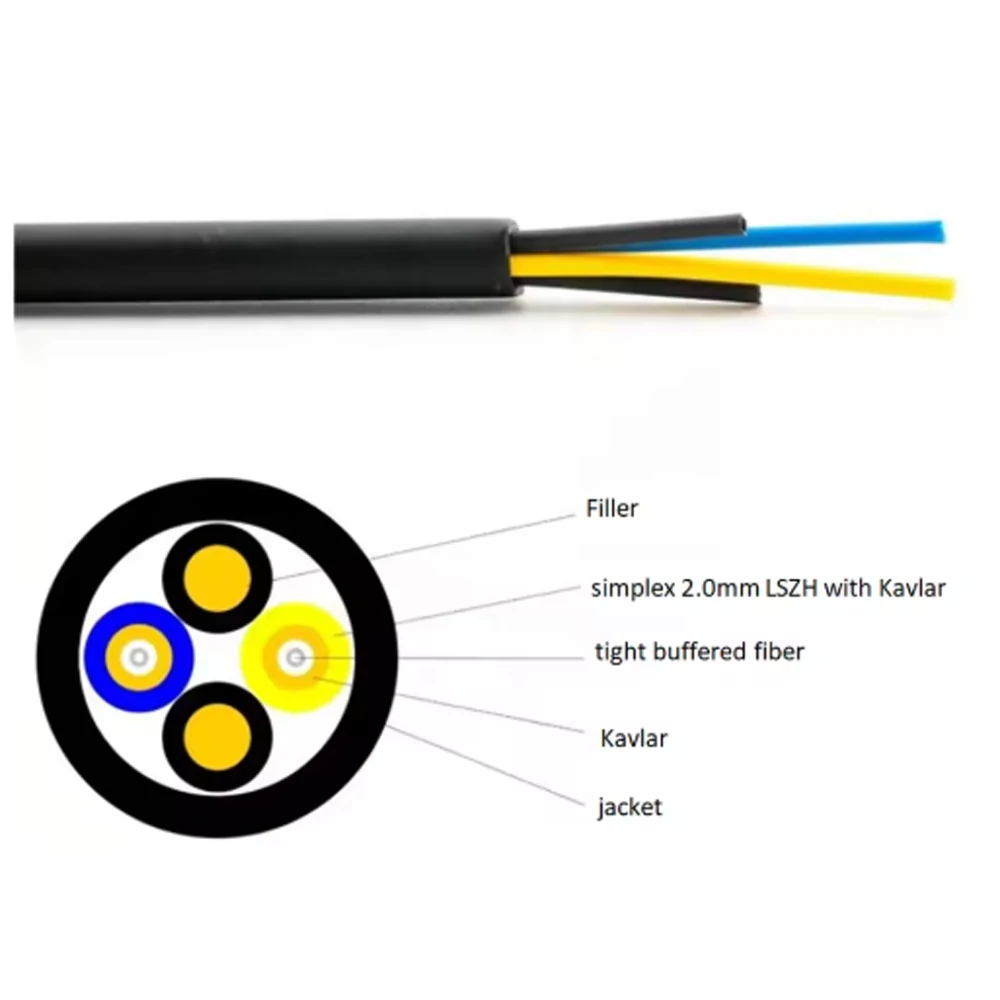

| Fiber Construction | Precision tight-buffered construction; crush-resistant, bend-resistant, no fiber core displacement |
| Strength Member | High-modulus aramid yarn full wrap; high tensile strength and shock cushioning |
| Jacket Material | LSZH low-smoke zero-halogen flame-retardant; optional TPU abrasion-resistant jacket |
| Ingress Protection | Finished connector IP67/IP68 dustproof and waterproof; salt-fog and weather resistant |
| Operating Temperature | -40℃～+75℃ |
| Storage Temperature | -50℃～+85℃ |
| Service Life | Outdoor standard installation ≥8 years |
| Environmental Compliance | RoHS compliant |
| Quality System | ISO9001 quality management system certified |
| Parameter | Φ5.0mm Slim Lightweight | Φ7.0mm Standard Reinforced |
| Cable Outer Diameter | 5.0mm±0.2mm | 7.0mm±0.2mm |
| Unit Weight | ≈22kg/km | ≈38～42kg/km |
| Jacket Characteristics | Standard thin wall; excellent flexibility | Thicker jacket; improved abrasion and UV resistance |
| Aramid Configuration | Standard amount for typical tensile needs | Full fill with ample tensile margin |
| Long-term Allowed Tension | ≥300N | ≥450N |
| Short-term Installation Tension | ≥400N | ≥600N |
| Minimum Static Bend Radius | ≥50mm | ≥70mm |
| Minimum Dynamic Bend Radius | ≥25mm | ≥35mm |
| Typical Fiber Count | 2 fibers (mainstream) | 2 fibers / 4 fibers common |
| Compatible Connectors | Compact ODVA, NSN, LC waterproof connectors | ODVA, ODC, FULLAXS and other standard large waterproof connectors |
| Product Strengths | Slim, soft, lightweight; easy ducting; suited to tight spaces; high value | High mechanical strength; abrasion and sun resistant; high installation tolerance; strong outdoor durability; engineering standard |
| Limitations | Weaker abrasion/crush resistance; not for frequent dragging or long-term open-air exposure | Slightly stiffer; less flexible in very tight ducts |
Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.
