| Parameter | Specification |
| Model | GJXFH－up to 4 fibers |

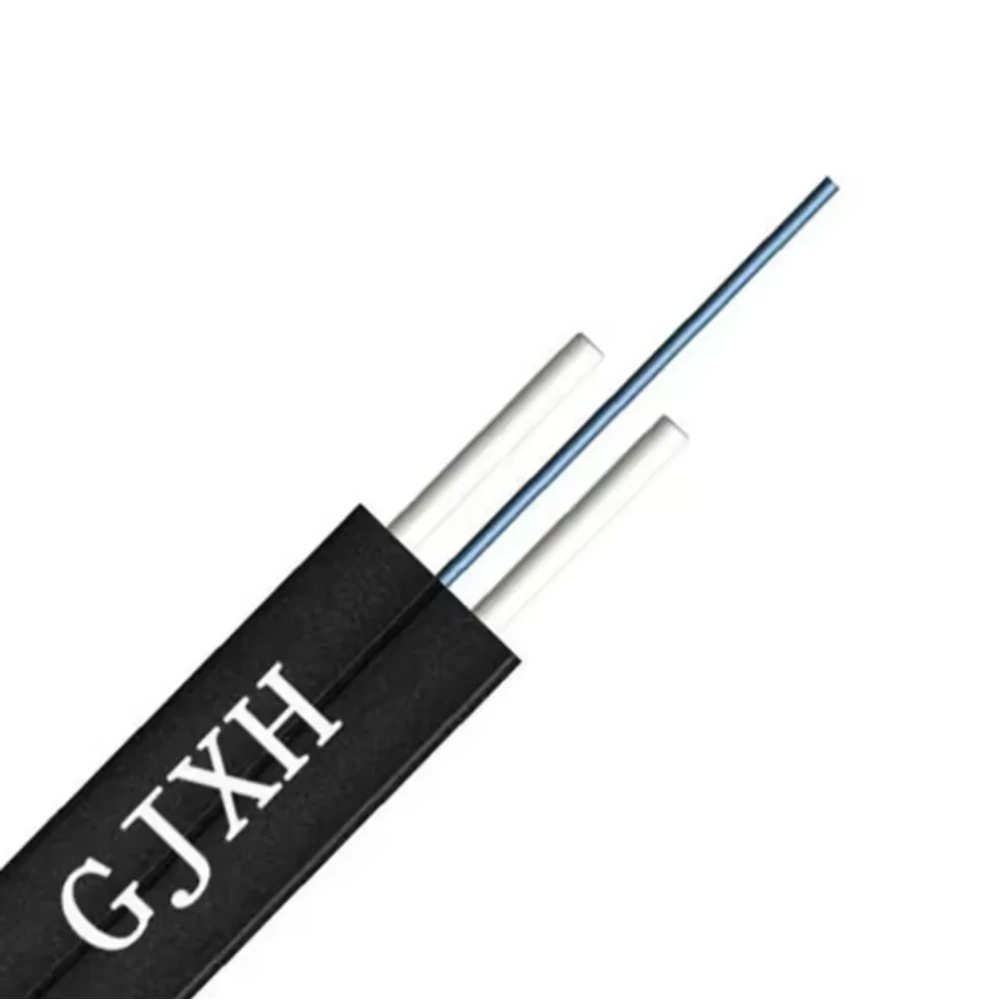

| Product Type | Non-metallic butterfly drop cable |
| Fiber Count | Up to 4 fibers |
| Fiber Type | B1.1 / B1.3 / B6a / B6b |

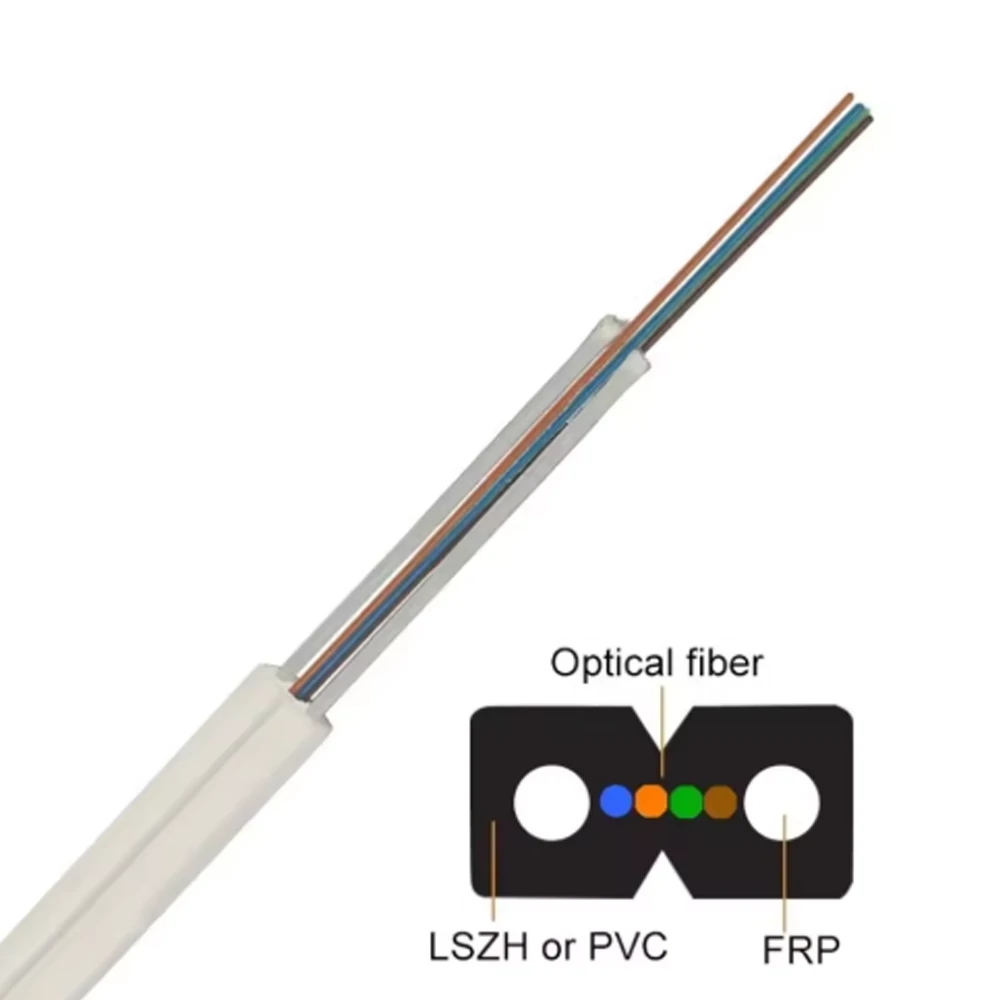

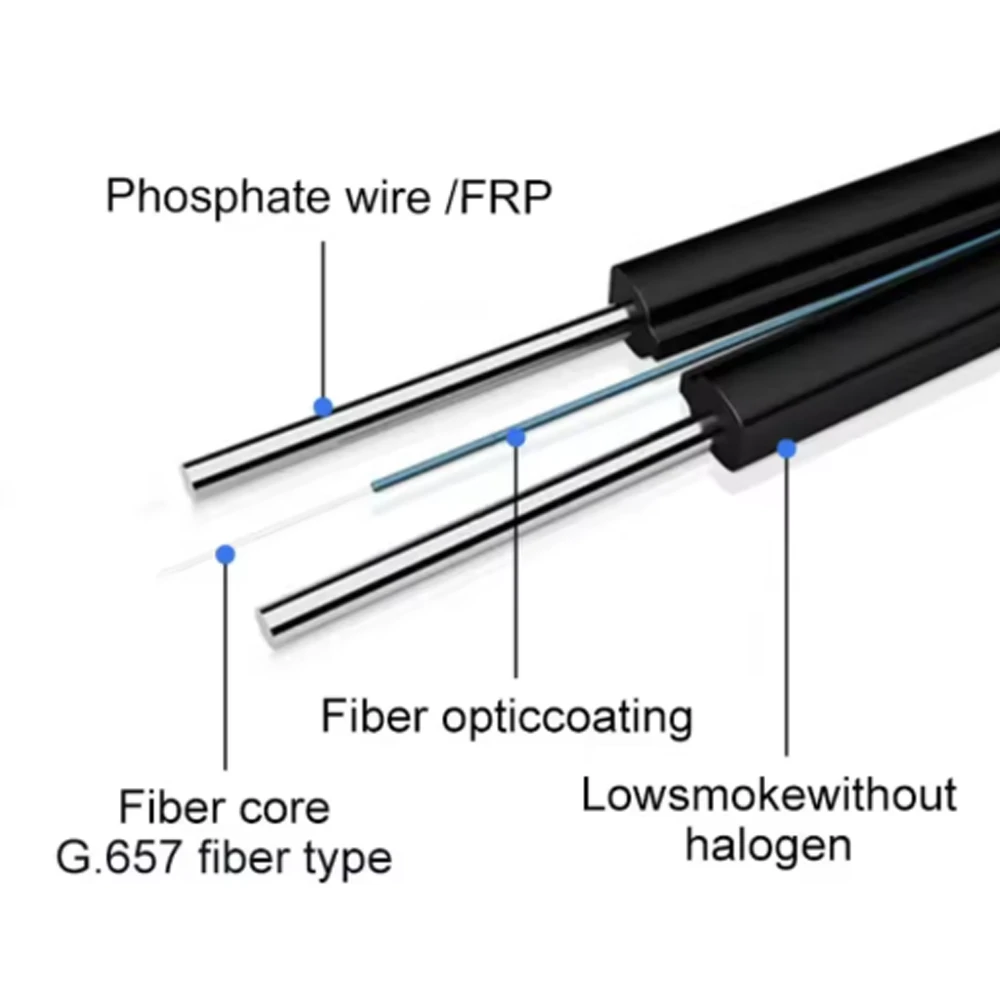

| Strength Member | Two parallel FRP non-metallic strength members |
| Jacket Material | LSZH flame-retardant jacket |
| Jacket Color | White / Black |
| Dimensions | 2.0mm × 3.0mm |
| Network | FTTH / FTTO / FTTB |
| Operating Wavelength | B1.1, B1.3 (G.652) | B6a (G.657A) | B6b (G.657B) |
| 1310nm | ≤0.40dB/km | ≤0.40dB/km | ≤0.60dB/km |
| 1550nm | ≤0.30dB/km | ≤0.30dB/km | ≤0.50dB/km |
| Cable Model | Fiber Count | Fiber Type | Allowed Tensile Load (N) | Allowed Crush Load (N/100mm) | Bend Radius (mm) | |||
| Long-term | Short-term | Long-term | Short-term | Static | Dynamic | |||
| GJXFH | Up to 4 fibers | B1.1, B1.3 | 100 | 200 | 1000 | 2200 | 30 | 60 |
| B6a | 100 | 200 | 1000 | 2200 | 15 | 30 | ||
| B6b | 100 | 200 | 1000 | 2200 | 10 | 25 | ||
Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.
