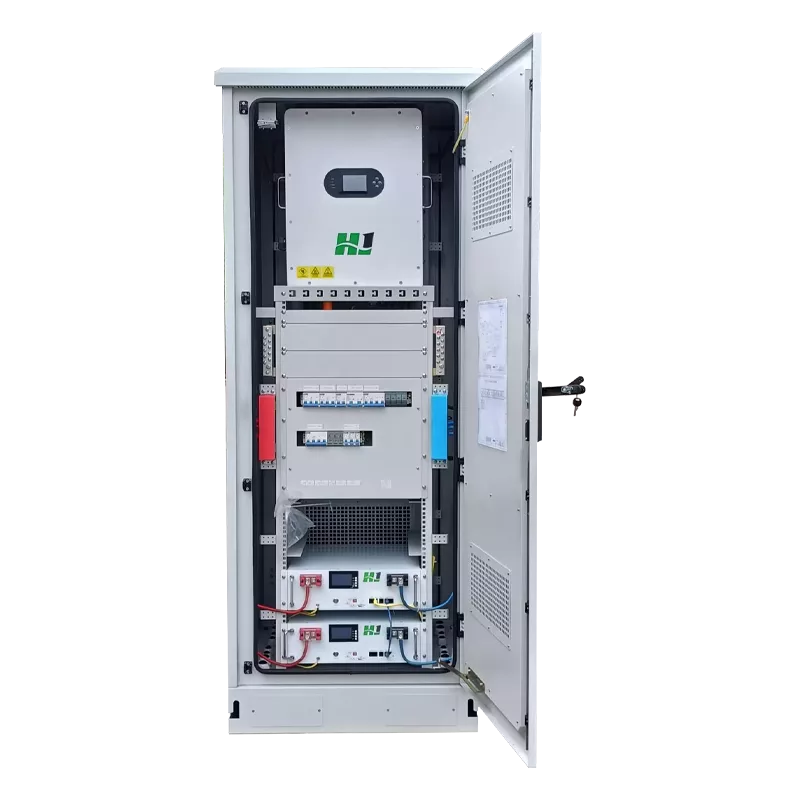

Site Battery Cabinet

Site Battery Cabinet
Site Battery Cabinet
Site Battery Cabinet
Site Battery Cabinet
Site Battery Cabinet
Site Battery Cabinet
Site Battery Cabinet
Site Battery Cabinet
Site Battery Cabinet

Product Overview

This Site Battery Cabinet series integrates battery PACKs, BMS, HV box, distribution unit, thermal control, and fire protection to deliver high-density storage backup for telecom base stations. Models HJ-ZB15 to HJ-ZB50 cover 15KWh–50KWh max storage capacity, with wall/pole and floor mounting for different site spaces. Compact structure, flexible layout, built-in fire protection, thermal control, and early warning; cycle life up to 6000 times. Stable and reliable for telecom network construction and O&M.

Model:
HJ-ZB15～HJ-ZB50
Storage Capacity:
15KWh～50KWh
Cycle Life:
Up to 6000 cycles
Installation:
Wall / pole / floor
Live Chat Request Brochure

Key Advantages

Easy Install & O&M

Compact structure, small footprint, flexible layout for on-site base-station install and O&M

Multi-layer Safety

Built-in fire protection, thermal control, and early warning improve storage system safety

Indoor/Outdoor Options

IP55/IP20 selectable for indoor rooms and outdoor sites

High Density, Long Life

High energy density saves site space; cycle life up to 6000 times

Site Battery Cabinet

Application Scenarios

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Carrier Transmission Node

Carrier Transmission Node

For fiber access, convergence distribution and line management

Technical Specifications

ModelHJ-ZB15HJ-ZB20HJ-ZB30HJ-ZB40HJ-ZB50
Power/
Max Storage Capacity15KWh（3 modules）20KWh（4 modules）30KWh（6 modules）40KWh（8 modules）50KWh（10 modules）
ApplicationEnergy storage
EnvironmentOutdoor
InstallationWall / pole mountFloor-standing
Dimensions700mm*550mm*400mm1200mm*700mm*700mm1600mm*700mm*700mm1900mm*750mm*750mm2200mm*750mm*750mm

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.
