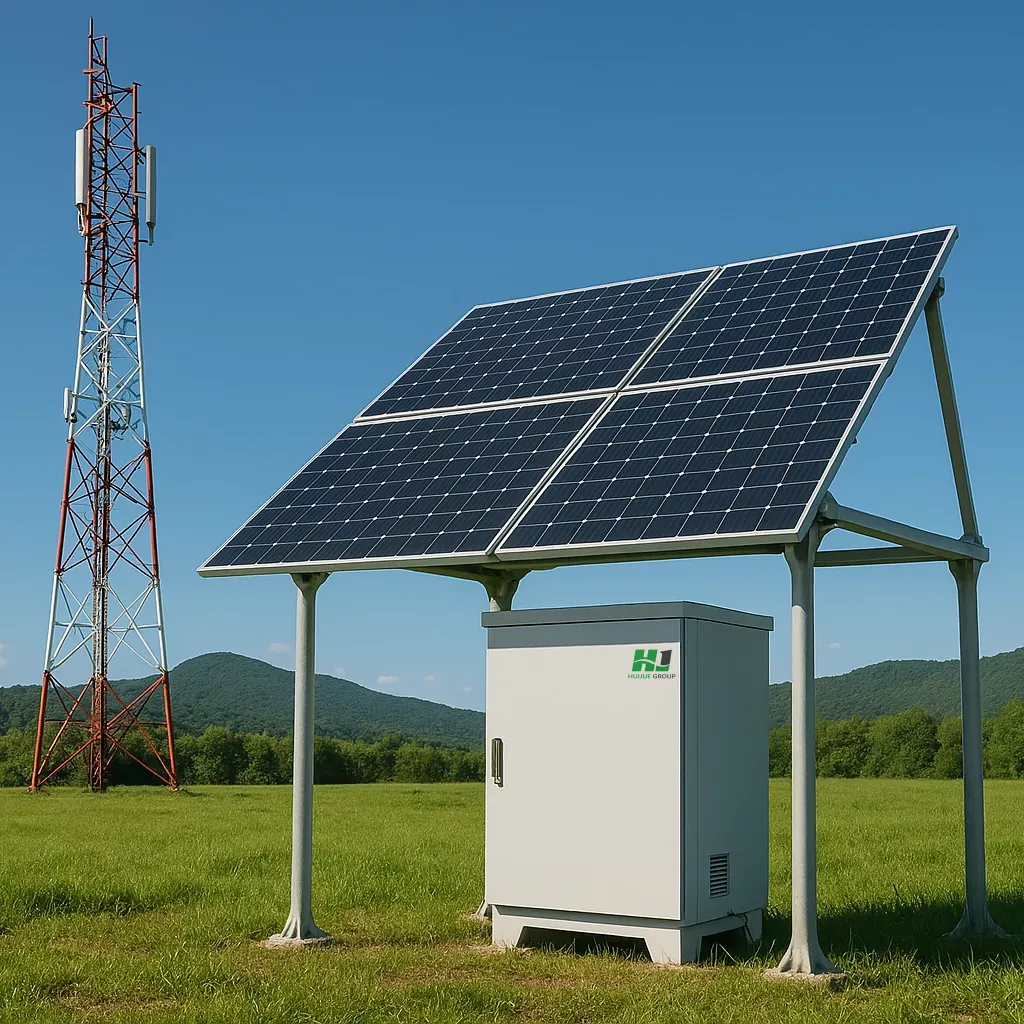

Outdoor Pv Energy Cabinet

Outdoor Pv Energy Cabinet
Outdoor Pv Energy Cabinet

Product Overview

The outdoor PV energy cabinet is a unified power platform system that uses a floor-standing installation structure suited to outdoor environments, supporting various AC/DC input and output formats to meet different power supply and output needs. The system integrates PV energy management functions, allowing PV power generation to be combined with base station mains power, backup power, and other multi-source power supply systems, achieving flexible energy dispatch and efficient utilization. It provides an outdoor green energy solution for communication base stations, helping operators reduce carbon emissions. The product is stable and reliable in performance, and is widely used in communication network construction and operation and maintenance.

Mounting:
Floor-standing
Power platform:
Unified power platform system
Input/output:
Supports various AC/DC input and output formats
Application:
Outdoor PV energy access for communication base stations
Live Chat Request Brochure

Key Advantages

Unified power platform

Unified management of multiple AC/DC input and output formats, meeting different power supply needs

Floor-standing outdoor deployment

The floor-standing installation structure is suited to outdoor environments, facilitating flexible deployment at base station sites

Multi-source integration

Integrated dispatch of PV, mains power, and backup power sources achieves efficient energy utilization

Green energy solution

Provides outdoor PV energy access for communication base stations, reducing carbon emissions

Outdoor Pv Energy Cabinet

Application Scenarios

New Energy Power Supporting Equipment

New Energy Power Supporting Equipment

Applicable to communication, power distribution and protection for energy applications

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Unattended Outdoor Base Station Sites

Unattended Outdoor Base Station Sites

Suitable for long-term stable operation in complex outdoor environments

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Technical Specifications

Model HJ-Z06-10O HJ-Z12-20O HJ-Z18-30O HJ-Z24-40O
Power 6kW (max 9kW) 12kW (max 24kW) 18kW (max 36kW) 24kW (max 48kW)
Maximum energy storage capacity 10KWh 20KWh 30KWh 40KWh
Energy input and output Grid power, photovoltaic, and energy storage
Operating environment Outdoor Outdoor (Dual Compartment)
Mounting Floor-standing
Specification dimensions 1200mm*700mm*700mm 1600mm*700mm*700mm 2000mm*750mm*750mm 2000mm*1550mm*800mm

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
