High Protection Rating
IP68-rated waterproof, dustproof, and corrosion-resistant for harsh outdoor environments.

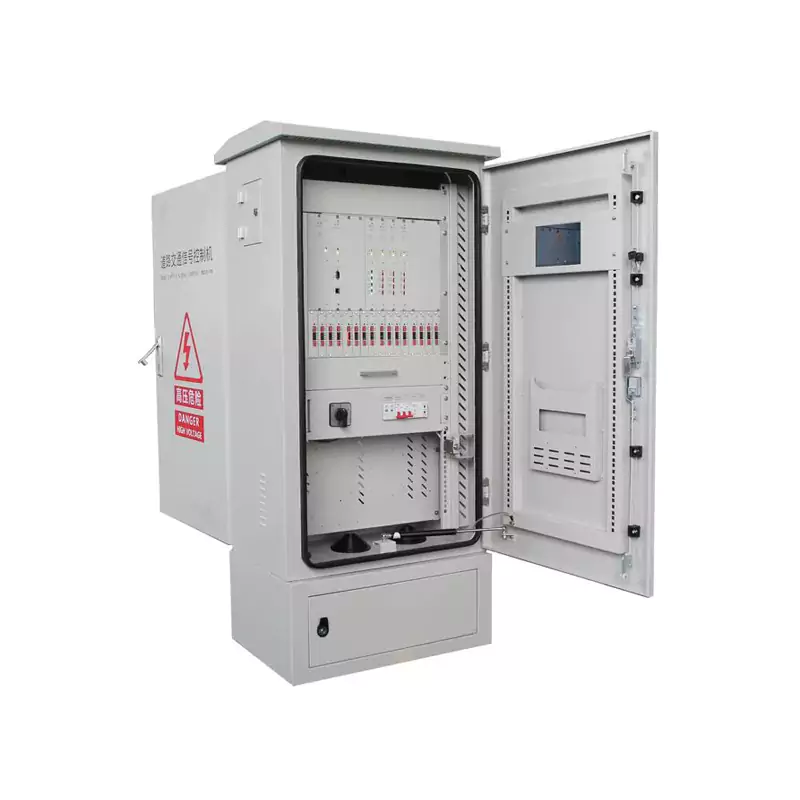

Highway Ctrl Box
Product Overview
The power distribution method adopts the two-stage distribution principle, with the input being a main fuse or circuit breaker, and the output being branch fuses or a combination of fuses and DC miniature circuit breakers. All key components are products from manufacturers with mandatory national certification, ensuring safe and reliable use. The enclosure is made of high-quality cold-rolled steel sheet with a compact structure, good electrical insulation performance, and a protective grounding system. The power surge arrester is integrated and installed close by within the box, with a short line distance for good protection. It supports wall-mounted enclosures or standard 19-inch rack installation. Cable entry holes are provided at both the top and bottom, selectable according to the cable entry method, for convenient maintenance.
- Power distribution method:
- Two-stage distribution
- Mounting:
- Wall-mounted/19-inch rack
- Enclosure material:
- High-quality cold-rolled steel sheet
- Lightning protection configuration:
- Class C/D optional
Key Advantages
Wide-Temperature Operation
Stable performance from -40°C to 60°C for deployment in extreme cold and heat.
Robust Structure
High-strength stainless steel with reinforced design for long-term equipment safety.
Flexible Configuration
Multiple sizes and interface options to meet diverse project requirements.
Application Scenarios
Traffic & Communication Node
Applicable for deployment along highways, railways, tunnels and monitoring sites
Communication Base Station
Supports installation, power supply, wiring and protection for base station equipment
Data Center
Ensure stable operation of cabinets, power distribution, cabling and key equipment
New Energy Power Supporting Equipment
Applicable to communication, power distribution and protection for energy applications
