Product Overview

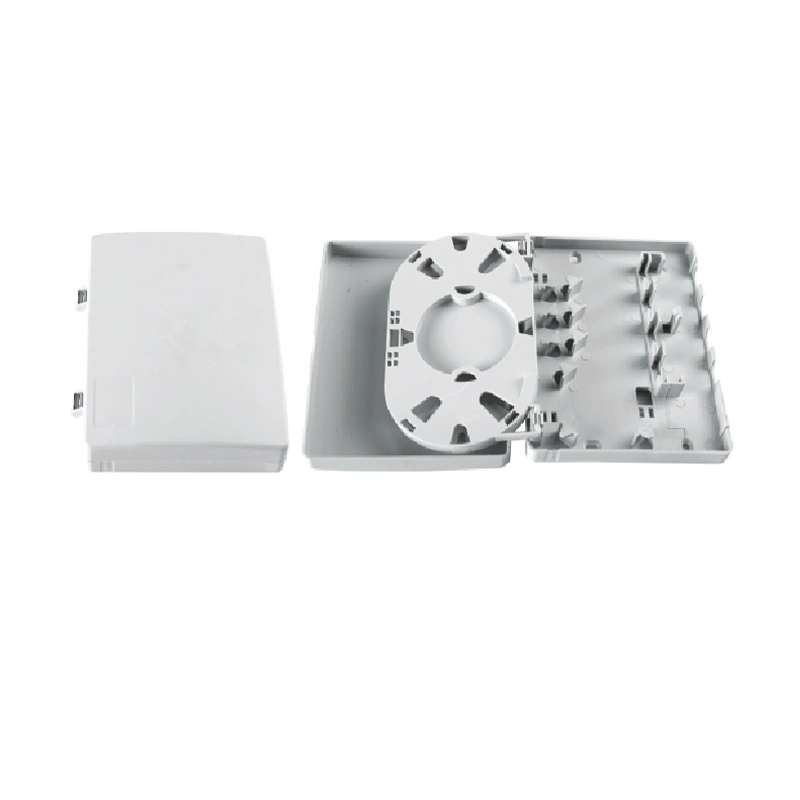

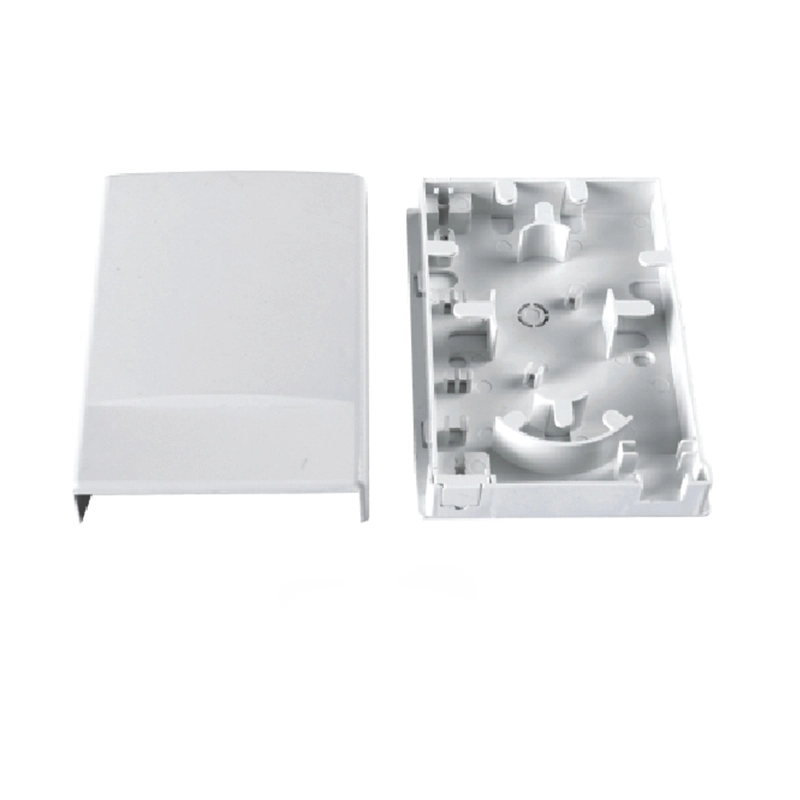

The HJ-MB fiber optic information panel is suitable for FTTH fiber cabling scenarios, accommodating 1 to 4 fiber cores for end-user connections. The product serves as a termination device or storage point for fiber patch cords, providing termination and protective fixing functions. The panel has a compact and attractive design, suitable for standard wall installation, providing a standardized terminal solution for FTTH end-point access. It is widely used in FTTH fiber access scenarios such as residential communities and commercial buildings, ensuring long-term stable and reliable fiber connections. The product is stable and reliable in performance, and is widely used in communication network construction and operation and maintenance.

Capacity specification:
1-4 fiber cores for end users
Application:
FTTH fiber cabling
Functional positioning:
Termination device and storage for fiber patch cords
Protective function:
Termination and protective fixing
Live Chat Request Brochure

Key Advantages

Multi-core accommodation

Accommodates 1-4 fiber cores for end users, meeting the access needs of different household types

Termination protection

Effectively provides termination and protective fixing functions, ensuring long-term stable and reliable fiber connections

Standardized design

Suitable for standard wall installation, seamlessly interfacing with FTTH cabling systems

Compact and attractive

The panel has a compact and attractive design, blending into indoor decor environments

Fiber Info Panel

Application Scenarios

FTTx Fiber Access

FTTx Fiber Access

Compatible with FTTH, building fiber access and ODN branching nodes

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Technical Specifications

Double-Layer Faceplate Box 2-core ABS Alloy Plastic ZD-MB01 HJ-MB01
86-Type Faceplate Box 2-core ABS Alloy Plastic ZD-MB02 HJ-MB02
Pull-Out Faceplate Box 2-core ABS Alloy Plastic ZD-MB03 HJ-MB03

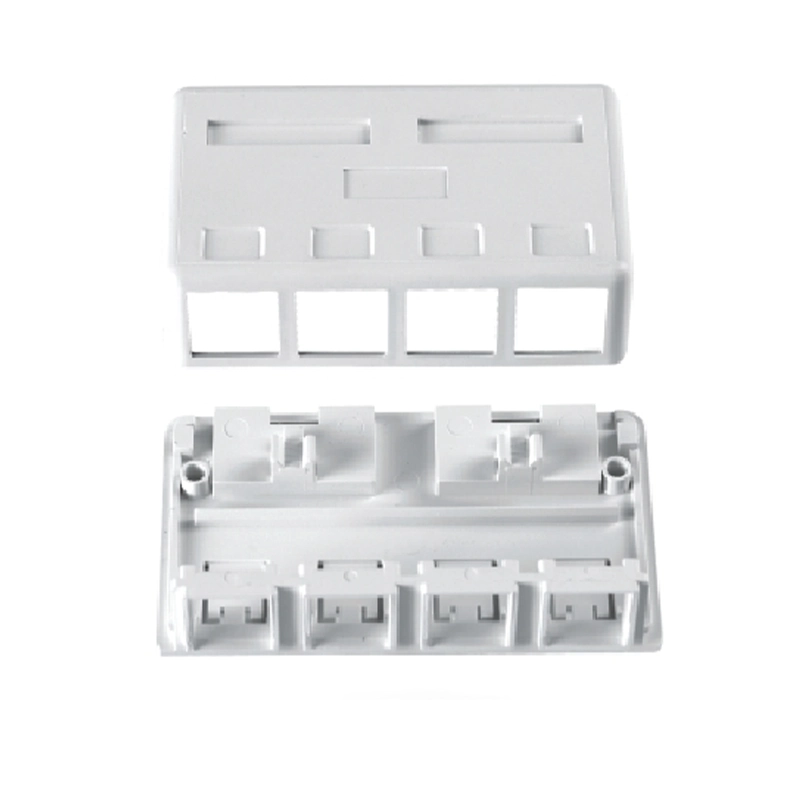

4-Core Faceplate Box 4-core ABS Alloy Plastic ZD-MB04 HJ-MB04
Dual-port panel box 2-core ABS Alloy Plastic ZD-MB05 HJ-MB05
Faceplate Box with Fiber Storage, 1-Core 1-Core ABS Alloy Plastic ZD-MB07 HJ-MB06
4-Port Faceplate Box 4-core ABS Alloy Plastic ZD-MB09 HJ-MB07
Dual-port panel box 2-core ABS Alloy Plastic ZD-MB10 HJ-MB08

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.
