144 Core Stainless Steel Fiber Cross-Connect Cabinet

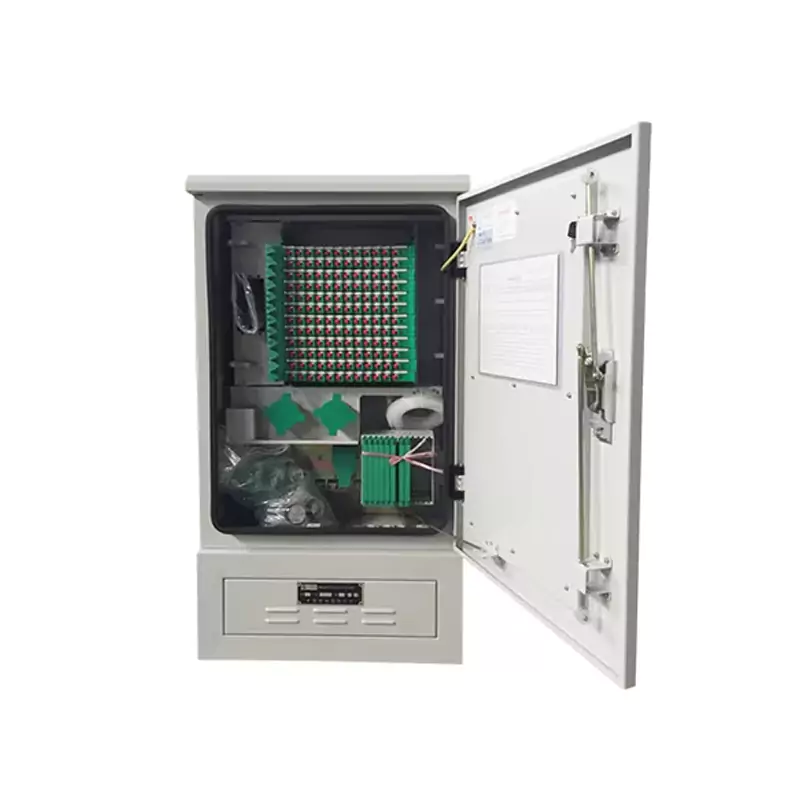

144 Core Stainless Steel Fiber Cross Cabinet
144 Core Stainless Steel Fiber Cross Cabinet

Product Overview

The 144-core stainless-steel optical cross-connect cabinet uses a high-strength double-wall insulated enclosure with interlayer insulation to prevent condensation. The door has sealing gaskets, a waterproof lock, and three-point latches for excellent sealing, anti-theft performance, corrosion resistance, and aging resistance for long outdoor deployment. Inside, 12 sets of 12-core integrated splice-and-distribution trays hold up to 144 SC/FC adapters, with cable fixtures and grounding for single-fiber and ribbon cable entry, splicing, termination, and patching—widely used in carrier outdoor feeder fiber networks.

Material:
Stainless steel sheet
Dimensions:
1080×600×320mm
Capacity:
144 cores
Tray:
12 × 12-core integrated trays
Live Chat Request Brochure

Key Advantages

Double-wall stainless-steel insulated housing

Interlayer insulation resists condensation, corrosion, and impact for long outdoor life

Three-point locking sealed waterproof cabinet door

Door gasket plus three-point lock for dust/water protection and high anti-theft security

Integrated splice-and-distribution tray

12-core integrated trays combine splicing and distribution for easy install and later maintenance

Compatible with multiple cable types

Complete cable fixing and grounding for single-fiber and ribbon cable termination

144 Core Stainless Steel Fiber Cross-Connect Cabinet

Application Scenarios

Carrier Transmission Node

Carrier Transmission Node

For fiber access, convergence distribution and line management

FTTx Fiber Access

FTTx Fiber Access

Compatible with FTTH, building fiber access and ODN branching nodes

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Technical Specifications

Enclosure Material Stainless steel sheet Dimensions (mm) 1080×600×320
Splice Tray Capacity 144-core Weight (kg)
Standard accessories
No. Name Unit Qty No. Name Unit Qty
1 Enclosure set 1 6 Cable fixing set 1
2 Cable tie (nylon) pcs 30 7 Rubber dust ring pcs 10
3 Expansion bolt pcs 4 8
4 Splice protection sleeve pcs 144 9
5 12-core integrated tray pcs 12 10
Optional accessories
No. Name Unit Qty No. Name Unit Qty
1 SC pigtail pcs 12 3 SC adapter pcs 144
2 FC pigtail pcs 12 4 FC adapter pcs 144

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.
