Chameleon Beauty Cover

Chameleon Beauty Cover

Product Overview

The chameleon-style camouflage enclosure is used for the beautification, concealment, and protection of base station antennas. The enclosure is available in two size options, 700×700×6000mm and 800×800×6000mm, and is floor-mounted on rooftops. The product's aesthetic design blends the base station antenna with the surrounding architectural environment, reducing visual intrusiveness, while providing effective physical protection for the antenna equipment. It is suitable for the beautification and concealed deployment of base station antennas on urban rooftops and in landscape-sensitive areas. The product is widely used in communication base station and outdoor equipment siting applications, delivering stable and reliable performance.

Product Dimensions:
700×700×6000mm / 800×800×6000mm
Mounting:
Rooftop Floor-Mounted Installation
Core Function:
Base station antenna beautification, concealment, and protection
Application:
Urban rooftops and landscape-sensitive areas
Live Chat Request Brochure

Key Advantages

Aesthetic Design

The chameleon design blends the base station antenna with the surrounding architectural environment, reducing visual impact

Antenna Protection

Provides effective physical shielding and environmental protection for base station antennas

Two Size Options

Available in 700×700×6000mm and 800×800×6000mm, accommodating different antenna configurations

Rooftop Installation

The floor-mounted structure is simple and stable, suitable for deployment on urban rooftops

Chameleon Beauty Cover

Application Scenarios

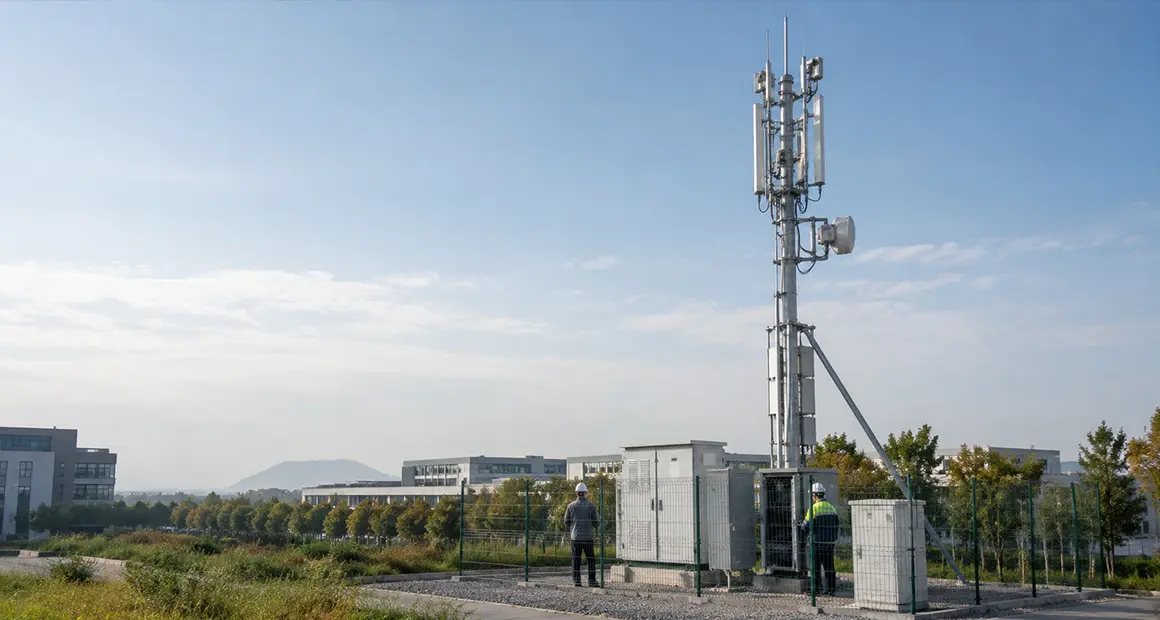

Communication Base Station

Communication Base Station

Supports installation, power supply, wiring and protection for base station equipment

Traffic & Communication Node

Traffic & Communication Node

Applicable for deployment along highways, railways, tunnels and monitoring sites

Unattended Outdoor Base Station Sites

Unattended Outdoor Base Station Sites

Suitable for long-term stable operation in complex outdoor environments

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Technical Specifications

Product Dimensions Outer cover: 700x700x6000mm / Outer cover: 800x800x6000mm
Head Type I-Shaped Head
Suitable for Mounting Antennas Standard Base Station Antenna
Number of Antennas Installed 1 set
Azimuth Angle ±45°
Mechanical Downtilt Angle 11° /13°
Color Color customized according to the specific installation environment
Auxiliary Materials Channel steel base, 2 diagonal braces
Internal Mounting Frame Internally requires a 4-meter mounting frame made of No. 5 angle steel
Mounting Rooftop Floor-Mounted Installation
Fiberglass Area 23 m² (surface baked paint finish)

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.
