Product Overview

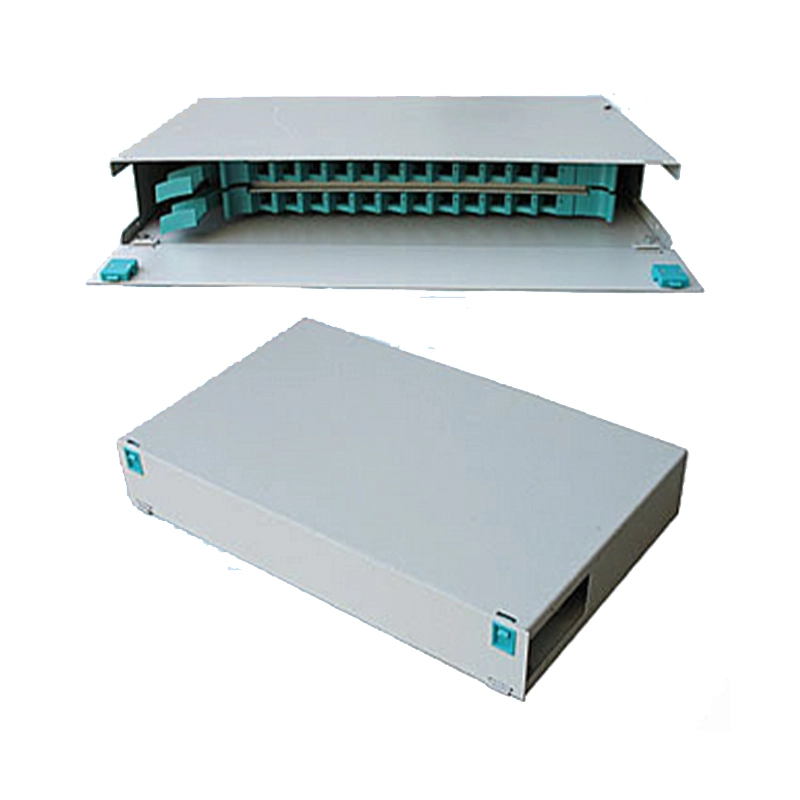

The 24-core ODF distribution unit is a fiber optic distribution device for standard 19-inch racks, featuring a cold-rolled steel housing with 2 integrated 12-core splicing trays built in. SC, FC, or ST fiber adapters are available as options, and it is compatible with cables from 6-18mm in diameter. The flip-open structure allows for simple opening and locking, and a full set of accessories including cable fixtures, rubber dust rings, and nylon cable ties is included. It enables fiber splicing, storage, and termination, and is widely used in small to medium fiber distribution systems such as FTTH (fiber to the home/community), fiber to the building, and wireless base stations.

Material:
Cold-rolled steel sheet
Dimensions:
482×250×88mm
Capacity:
24 cores
Tray:
2 integrated 12-core trays
Live Chat Request Brochure

Key Advantages

Standard 19-inch rack compatible

Universal 1U rack size, installs directly into standard fiber distribution cabinets

Easy-to-operate integrated fiber tray

Integrated fiber tray layout makes splicing, cabling, and maintenance convenient

Multiple adapter types available

Supports SC/FC/ST adapters selected as needed, compatible with various fiber optic networks

Compatible with various drop cables

Accepts cables from 6-18mm in diameter, suitable for various FTTH cabling scenarios

24 Core ODF Wiring Unit

Application Scenarios

Carrier Transmission Node

Carrier Transmission Node

For fiber access, convergence distribution and line management

Data Center

Data Center

Ensure stable operation of cabinets, power distribution, cabling and key equipment

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Technical Specifications

Enclosure Material Cold-rolled steel sheet Dimensions (mm) 482×250×88
Splice Tray Capacity 24-core Weight (kg)
Standard accessories
No. Name Unit Qty No. Name Unit Qty
1 Enclosure set 1 6 Cable fixing set 1
2 Cable tie (nylon) pcs 20 7 Rubber dust ring pcs 2
3 Large flat-head screw pcs 4 8
4 Buckle Nut pcs 4 9
5 12-core integrated tray pcs 2 10
Optional accessories
No. Name Unit Qty No. Name Unit Qty
1 SC pigtail pcs 2 3 SC adapter pcs 24
2 FC pigtail pcs 2 4 FC adapter pcs 24

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
