Product Overview

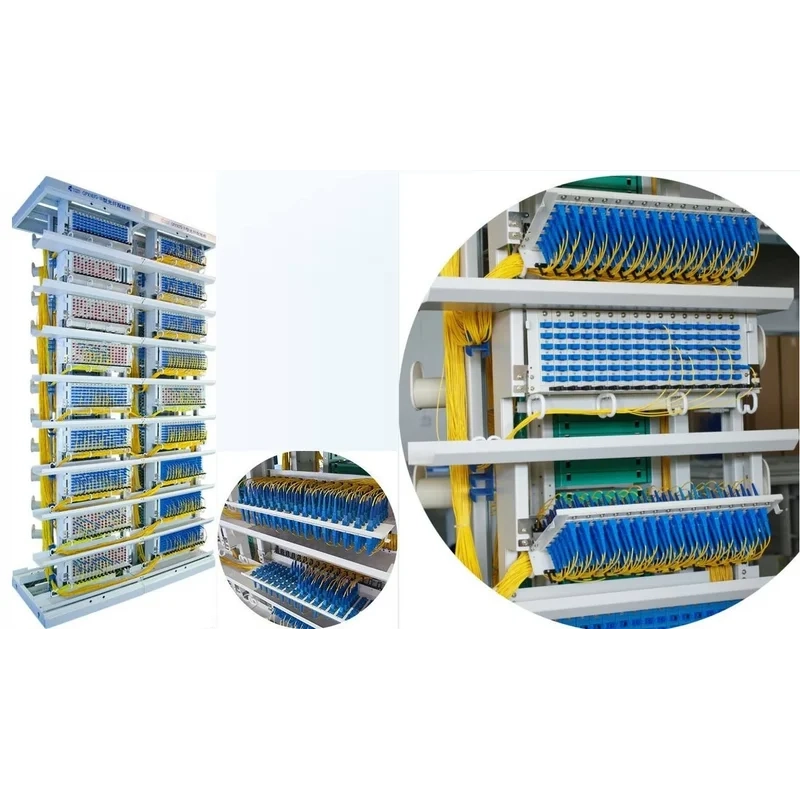

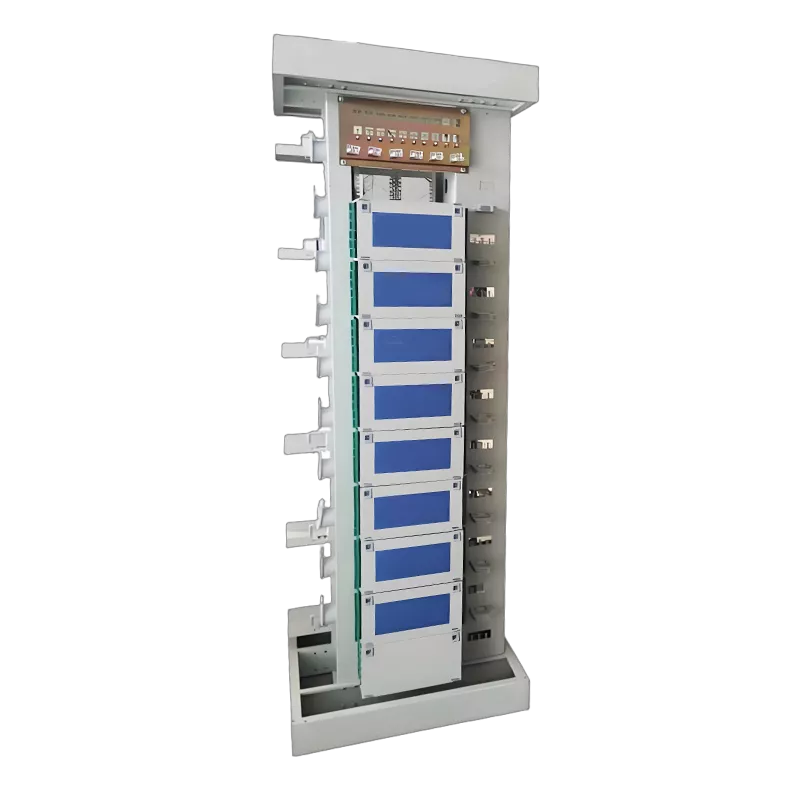

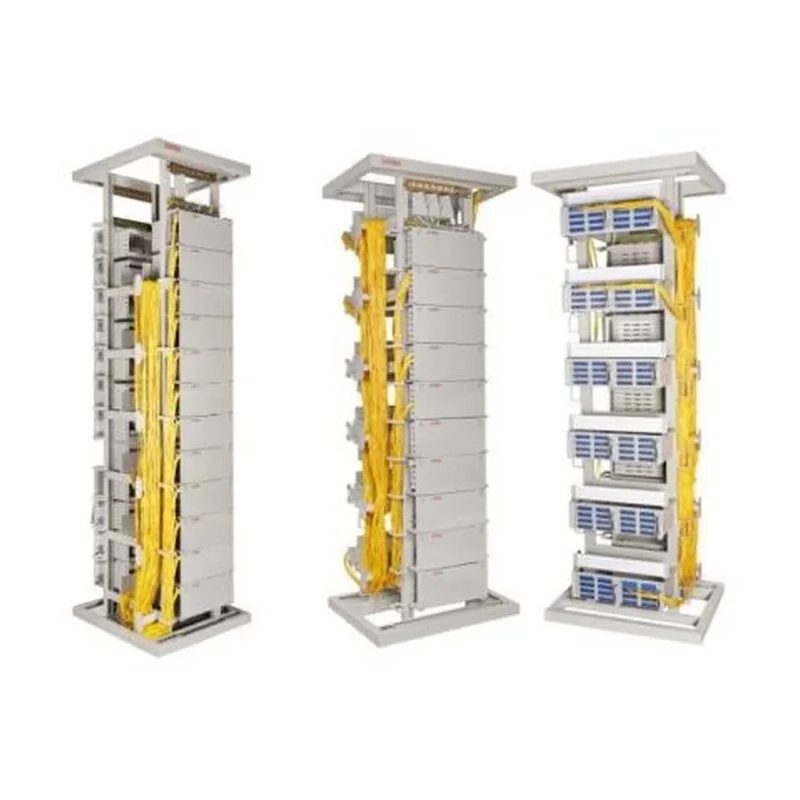

The 864-core MDF (main distribution frame) is a backbone fiber main distribution device for large communication equipment rooms. It features a removable cold-rolled steel rack with an open, tiered layout, with all cabling operations concentrated on the front, supporting wall-adjacent floor-standing installation to save equipment room space. It houses 72 integrated 12-core splicing and distribution trays inside, fully populated with up to 864 SC/FC fiber adapters, integrating fiber splicing, storage, and patching into a single unit. It is equipped with a complete set of cable entry, fixing, and grounding protection components, enabling through-connection, reservation, and line distribution and management between backbone and distribution fiber cables, and is suitable for high-capacity fiber optic networking projects in large equipment rooms and campuses.

Material:
Cold-rolled steel sheet
Dimensions:
2600×840×600mm
Capacity:
864 cores
Tray:
72 integrated 12-core trays
Live Chat Request Brochure

Key Advantages

High-capacity, high-density distribution

72 integrated fiber trays terminate 864 cores together, meeting the massive fiber management needs of large equipment rooms

Open, front-access structure for operations and maintenance

Tiered modular layout eliminates the need for side or rear access, making maintenance and expansion more convenient

Compatible with multiple adapter types

Supports free selection of SC/FC/ST adapters, compatible with various backbone fiber optic systems

Comprehensive cable safety protection

Built-in cable fixing and grounding protection devices provide all-round protection for fiber lines

864 Core Main Fiber MDF Frame

Application Scenarios

Carrier Transmission Node

Carrier Transmission Node

For fiber access, convergence distribution and line management

Data Center

Data Center

Ensure stable operation of cabinets, power distribution, cabling and key equipment

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Technical Specifications

Enclosure Material Cold-rolled steel sheet Dimensions (mm) 2600×840×600
Splice Tray Capacity 864-core Weight (kg)
Standard accessories
No. Name Unit Qty No. Name Unit Qty
1 Frame Body set 1 6 Cable fixing set 1
2 Cable tie (nylon) pcs 30 7 Rubber dust ring pcs 4
3 Expansion bolt pcs 4 8
4 Splice protection sleeve pcs 864 9
5 12-core integrated tray pcs 72 10
Optional accessories
No. Name Unit Qty No. Name Unit Qty
1 SC pigtail pcs 72 3 SC adapter pcs 864
2 FC pigtail pcs 72 4 FC adapter pcs 864

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
