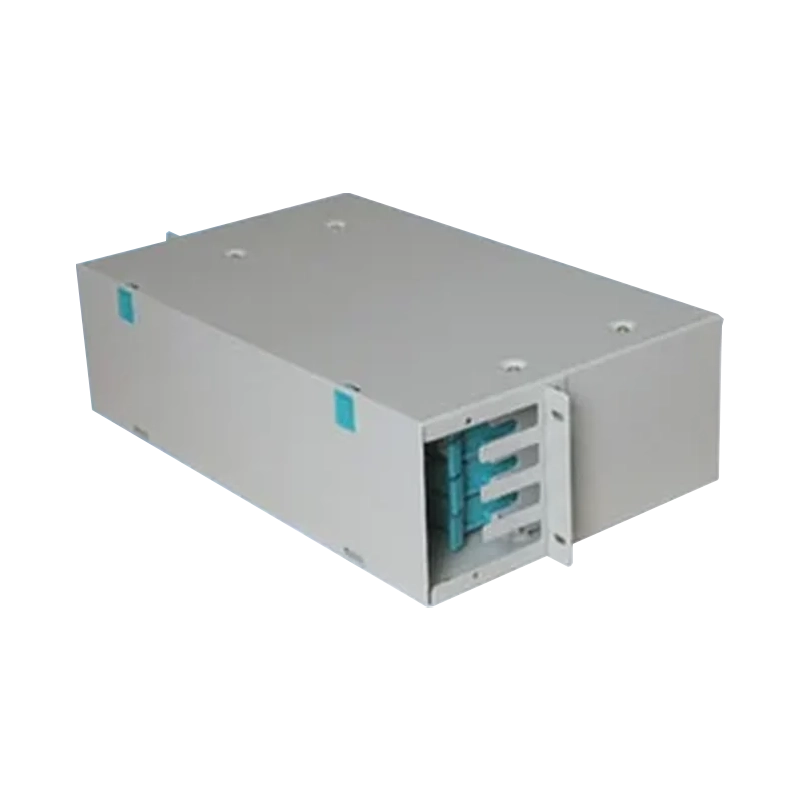

48 Core ODF Wiring Unit

48 Core ODF Wiring Unit
48 Core ODF Wiring Unit

Product Overview

The 48-core ODF distribution unit is a fiber optic distribution device for standard 19-inch racks, with a cold-rolled steel housing and 4 integrated 12-core splicing trays built in. SC, FC, or ST fiber adapters can be selected as needed, and it is compatible with cables from 6-18mm in diameter. The flip-open structure is simple to open and lock, and it comes with a full set of accessories including cable fixtures, rubber dust rings, and nylon cable ties. It enables fiber splicing, storage, and termination, and is suitable for small to medium fiber distribution systems such as FTTH, fiber to the building, and wireless base stations.

Material:
Cold-rolled steel sheet
Dimensions:
482×250×131mm
Capacity:
48 cores
Tray:
4 integrated 12-core trays
Live Chat Request Brochure

Key Advantages

Universal standard 19-inch rack compatibility

Standard 2U rack size, installs directly into various fiber distribution cabinets

High-capacity integrated fiber tray layout

4 integrated 12-core fiber trays terminate 48 fibers simultaneously with neat cabling

Multiple adapter types available

Supports free selection of SC/FC/ST adapters, compatible with various fiber optic networking projects

Compatible with various drop cables

Compatible with cables from 6-18mm in diameter, meeting various FTTH cabling needs

48 Core ODF Wiring Unit

Application Scenarios

Carrier Transmission Node

Carrier Transmission Node

For fiber access, convergence distribution and line management

Data Center

Data Center

Ensure stable operation of cabinets, power distribution, cabling and key equipment

Enterprise Computer Rooms & Edge Nodes

Enterprise Computer Rooms & Edge Nodes

Supports centralized deployment of small computer rooms and edge computing nodes

Low-Voltage Systems for Campus and Buildings

Low-Voltage Systems for Campus and Buildings

Supports access and management for park and building low-voltage systems

Technical Specifications

Enclosure Material Cold-rolled steel sheet Dimensions (mm) 482×250×131
Splice Tray Capacity 48-core Weight (kg)
Standard accessories
No. Name Unit Qty No. Name Unit Qty
1 Enclosure set 1 6 Cable fixing set 1
2 Cable tie (nylon) pcs 20 7 Rubber dust ring pcs 2
3 Large flat-head screw pcs 4 8
4 Buckle Nut pcs 4 9
5 12-core integrated tray pcs 4 10
Optional accessories
No. Name Unit Qty No. Name Unit Qty
1 SC pigtail pcs 4 3 SC adapter pcs 48
2 FC pigtail pcs 4 4 FC adapter pcs 48

Note: Specifications shown are standard values. Actual performance may vary depending on installation environment, component compatibility, and grid conditions. We reserve the right to continuously optimize design and specifications. For final technical proposals and formal quotations, please contact our sales team to request an official specification confirmation document.

Contact Us for Product Spec Sheet
